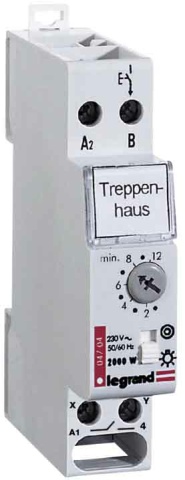

Legrand (BT) Staircase lighting timer 230V, 50/60Hz Rex800Multi/04704 NEW

Item condition: New and in original packaging

Manufacturers: Legrand
EAN: 4010957047047
Heiz24 article number: SP1111060
TARIC: 85365080
Country of origin: DE
Category: Sicherungsautomaten, SHL,FI und sonst. Einbaugeräte

€ 48,78

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

4 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 4 Pcs. we can order for you

Pcs.

Rex800Multi, staircase light timer, electronic, operating voltage 230 V 50/60 Hz, 1 NO contact, extremely quiet, time range: 0.5 - 12 min., with separate control voltage input 8 - 230 VAC/DC, can be switched on at any time. Multifunctional, adjustable at the selector switch: TLZ standard, with pre-warning function, with long-term function 1 h, with pre-warning and long-term function 1 h, disengageable timer, disengageable timer with pre-warning function, electronic relay. Automatic 3-/4-wire connection identification, manual switch for switching from minute light to continuous light, zero-crossing circuit, glow lamp current max. 50 mA, protection class IP 20, mounting on top-hat rail EN 60715 by means of latching quick fastening, with labelling window, unit width: 1 division unit a 17.5 mm.

Item information	Value
Mounting type:	DIN-Schiene
Width in units of division:	1
Number of contacts as normally open:	1
Supply voltage type:	AC
Control voltage type 1:	AC
Function:	elektronisch mit Multifunktion
Supply voltage:	250 V
Installation depth:	70 mm
Rated switching current:	16 A
Max. Incandescent lamp load:	2000 W
Max. Fluorescent lamp load:	1000 VA
Max. Fluorescent lamp load (duo circuit):	1000 VA
Max. Fluorescent lamp load (parallel compensated):	1000 VA
Control voltage frequency 1:	50..60 Hz
Max. Switching current (cos phi:	0,6)=13 A
Control voltage 1:	8..230 V
Switch-off early warning:	flackern
Follow-up:	nachschaltbar
Relapse delay:	0,5..12 min
Circuit type:	3- und 4-Leiter-Schaltung
Impulse function selectable:	ja
Push button glow lamp current:	50 mA
Control voltage 2:	8..230 V
Control voltage type 2:	AC/DC
Control voltage frequency 2:	50..60 Hz
Shipping weight:	0,20 kg
Item weight:	0,20 kg
