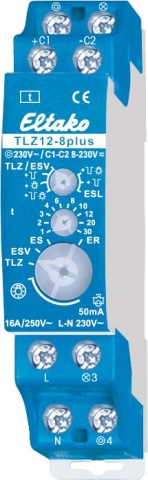

Eltako staircase lighting timer TLZ12-8plus NEW

Item condition: New and in original packaging

Manufacturers: Eltako#
EAN: 4010312401613
Heiz24 article number: SP5710342
TARIC: 85365080
Country of origin: CN
Category: Distribution and securing material

€ 35,73

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

169 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 169 Pcs. we can order for you

Pcs.

1 NO contact not potential-free 16A/250V AC, 230V LED lamps up to 600W, ESL up to 200W, incandescent lamps up to 2300W. Control voltage 230V and/or 8..230V UC. Switch-off prewarning and push-button permanent light can be switched on. Stand-by loss only 0.7W. With ESL optimisation and multifunction. Zero-crossing contact switching to protect contacts and lamps. In particular, this prolongs the life of energy-saving lamps. Due to the use of a bistable relay, there is no coil power loss and no heating even when switched on. After installation, wait for the automatic short synchronisation before connecting the switched load to the mains. Additionally with galvanically isolated universal control voltage. Automatic recognition of the switching type. Glow lamp current up to 50mA, depending on the ignition voltage of the glow lamps. Precise time setting 1 to 30 minutes with minute scale. Permanent light switch with the large rotary switch. After a power failure in the TLZ function setting, the lighting is switched on again if the time lapse had not yet ended. With double connections for push-button and lamp, so that top and bottom or only bottom can be connected as desired. When the switch-off early warning is switched on, the lighting flickers approx. 30 seconds before the time expires and a total of 3 times at increasingly shorter intervals. If the continuous light button is switched on, pressing the button for longer than 1 second can set the light to continuous, which is automatically switched off after 60 minutes or can be switched off by pressing the button for longer than 2 seconds. If the continuous pushbutton light and the switch-off early warning are switched on, the switch-off early warning is given after the continuous light is switched off.

Item information	Value
Mounting type:	DIN-Schiene
Width in units of division:	1
Number of contacts as normally open:	1
Supply voltage type:	AC
Control voltage type 1:	AC
Function:	elektronisch mit Ausschaltvorwarnung
Supply voltage:	230 V
Installation depth:	58 mm
Rated switching current:	1,6 A
Max. Incandescent lamp load:	400 W
Max. Fluorescent lamp load (parallel compensated):	400 VA
Control voltage frequency 1:	50 Hz
Control voltage 1:	230 V
Switch-off early warning:	flackern
Follow-up:	nachschaltbar + Dauerlicht + Zeitverlängerung
Relapse delay:	1..12 min
Circuit type:	3- und 4-Leiter-Schaltung
Impulse function selectable:	ja
Push button glow lamp current:	50 mA
Control voltage 2:	8..230 V
Control voltage type 2:	AC/DC
Max. Switching capacity LED:	200 W
Shipping weight:	0,08 kg
Item weight:	0,08 kg
Dimensions ( Length × Width × Height ):	2,00 × 9,00 × 7,00 cm
