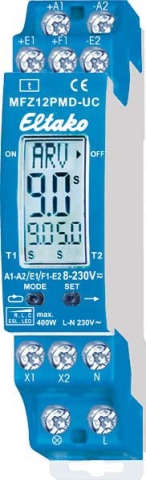

Power MOSFET with almost unlimited switching up to 400W. Automatic lamp detection. Stand-by loss only 0.3 Watt. Dimming to minimum brightness and maximum brightness as well as soft on/soft off for lamp switching additionally adjustable. Modular device for mounting on DIN-EN 60715 TH35 rail. 1 division unit = 18mm wide, 58mm deep. Digitally adjustable and fully electronic multifunction time relay for lamps up to 400W depending on ventilation conditions. Dimmable 230V LED lamps and dimmable energy-saving lamps additionally dependent on the lamp electronics and the dimming type. If the minimum brightness is not set to 0, the lamp is not switched off but dimmed down to the set percentage value. Up to 3600W with power add-ons LUD12-230V at connections X1 and X2. Universal control voltage local 8..230V UC and additional universal voltage control inputs 8..230V UC central on and central off. The control inputs are galvanically isolated from the 230V supply and switching voltage. Zero-crossing switching to protect lamps. Glow lamp current 5mA from 110V control voltage. Automatic electronic overload protection and overtemperature cut-off. Both the function and the times are entered with the two buttons MODE and SET and displayed digitally on an LC display. When setting the time, all values can be entered within the preselected time frames (0.1 to 9.9 or 1 to 99 seconds, minutes or hours). The longest time is 99 hours. 600 time settings are thus possible. The entered time(s) is (are) continuously displayed digitally. Adjustable functions: RV = release delay, AV = response delay, AV+ = additive response delay, TI = clock starting with pulse, TP = clock starting with pause, IA = pulse-controlled response delay, IF = pulse shaper, EW = switch-on wiper, AW = switch-off wiper, EAW = switch-on and switch-off wiper, ARV = On-delay and off-delay, ARV+ = Additive on-delay and off-delay, ES = Impulse switch, SRV = Impulse switch with off-delay, ESV = Impulse switch with off-delay and switch-off pre-warning, ER = Relay, ON = Permanent ON, OFF = Permanent OFF. For the functions TI, TP, IA, EAW, ARV and ARV+, a different second time can be entered, also with a different time frame. Setting the times and functions: Press the MODE key to select the LCD element to be changed. The element being accessed flashes. Pressing the SET key changes the accessible element. This can be the function, the time frame, the time T1 or the time T2 (only for TI, TP, IA, EAW, ARV and ARV+). Each entry is terminated with the MODE key. After setting the time with MODE, no element flashes any more ¿ the time relay is ready for operation. The next time the MODE key is pressed, the input cycle starts again from the beginning, all set parameters are retained if they are not changed with SET. 25 seconds after the last actuation and with the element still flashing, the input cycle is automatically terminated and the previous changes expire. Setting the additional parameters valid for all functions: If the MODE key is pressed for longer than 2 seconds, the submenu is accessed. The parameter to be changed is selected with the SET key and confirmed with MODE. The value is entered with the SET key and confirmed with MODE. After the submenu item 'LED', you automatically return to the main menu. MIN = Minimum brightness when switched off adjustable to 0 and from 10 to 89 (%), factory setting = 0. MAX = Maximum brightness when switched on adjustable from 10 to 99 (%), factory setting = 99. MAX must be at least 10 steps above MIN. RMP = Switch-on and switch-off ramp (soft on and soft off) adjustable from 0 = 10ms to 99 = 1s, factory setting = 0. LED
