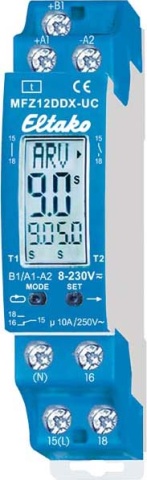

Eltako time relay, multifunction 10A/250VAC MFZ12DDX-UC NEW

Item condition: New and in original packaging

Manufacturers: Eltako#
EAN: 4010312603079
Heiz24 article number: SP0677006
TARIC: 85364900
Country of origin: CN
Category: Sicherungsautomaten, SHL,FI und sonst. Einbaugeräte

€ 42,65

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

182 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 182 Pcs. we can order for you

Pcs.

1 changeover contact potential-free 10A/250V AC, 230V LED lamps up to 200W, incandescent lamps 2000W*. Stand-by loss only 0.05-0.5 Watt. To do this, simply connect the N conductor to the terminal (N) and L to 15 (L). This results in an additional stand-by consumption of only 0.1 Watt. Universal control voltage 8..230V UC. Supply voltage the same as the control voltage. Both the function and the times are entered at the touch of a button and shown digitally on an LC display. Only two keys have to be operated for this. When setting the time, all values can be entered within the preselected time frames (0.1-9.9 or 1-99 seconds, minutes or hours). The longest time is 99 hours. 600 time settings are possible. The entered time(s) is (are) continuously displayed digitally. Due to the use of a bistable relay, there is no coil power loss and no heating through this, even when switched on. After installation, wait for the automatic short synchronisation before connecting the switched consumer to the mains.

Item information	Value
Mounting type:	DIN-Schiene
Width in units of division:	1
Supply voltage type:	AC/DC
Control voltage type 1:	AC/DC
Function:	Multifunktion
Actuation type:	digital mit Multifunktion
Supply voltage:	8..230 V
Installation height:	58 mm
Control voltage frequency 1:	50 Hz
Control voltage 1:	8..230 V
1. Time range:	0,1..40
1. Time range Unit:	Minuten/Stunden
Switching capacity incandescent lamps:	2000 W
Switching capacity fluorescent lamps DUO:	1000 VA
Switching capacity fluorescent lamps parallel:	500 VA
Number of switches:	1
Switching capacity fluorescent lamps inductive:	1000 VA
Shipping weight:	0,09 kg
Item weight:	0,09 kg
Dimensions ( Length × Width × Height ):	2,00 × 9,00 × 7,00 cm
