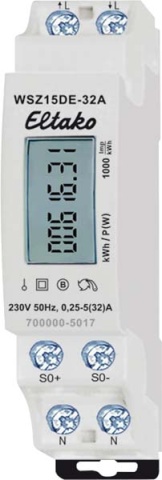

Eltako AC meter uncalibrated WSZ15DE-32A NEW

Item condition: New and in original packaging

Manufacturers: Eltako#
EAN: 4010312501702
Heiz24 article number: SP6907681
TARIC: 90283011
Country of origin: CN
Category: Mess- und Prüfgeräte

€ 50,86

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

13 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 13 Pcs. we can order for you

Pcs.

Maximum current 32A, stand-by loss only 0.4 Watt. Modular device for mounting on DIN-EN 60715 TH35 rail. 1 division unit =18mm wide, 58mm deep. Accuracy class B (1%). With S0 interface. This AC meter measures the active energy on the basis of the current flowing between the input and the output. The self-consumption of only a maximum of 0.4 Watt active power is not measured and not displayed. Like all meters without MID declaration of conformity, not approved for monetary electricity billing in Europe. Every 30 seconds, the display switches for 5 seconds from the accumulated active energy in kWh to the instantaneous consumption in watts. 1 outer conductor with a current of up to 32A can be connected. If a load of more than 50% is expected, a ventilation distance of 1/2 pitch unit from units mounted next to it must be maintained. If necessary, use the DS12 spacer. The starting current is 20mA. The display can only be read with power supply. However, the consumption is stored in a non-volatile memory and is immediately displayed again after a power failure. Two N-terminals for safe cross-wiring of several meters. The digital display has 7 digits. Up to 99999.99 kWh, two decimal places are displayed. From 100000.0 kWh only one. The power consumption is indicated by a bar flashing 1000 times per kWh in the display. Error message: In the event of a connection error, an LED flashes in the display.

Item information	Value
Version:	Direktmessung
Suitable for:	Bezug
Protection class (IP):	IP20
Height:	82 mm
Mounting type:	REG
Width in units of division:	1
Display type:	digital
Accuracy class:	B
Backstop:	Ja
Wide:	18 mm
Depth:	58 mm
Frequency:	50 Hz
Rated current (In):	5 A
Calibrated:	nein
Execution of the interface:	sonstige
Number of posts:	7
Energy type:	Wirkleistung
Pulse type:	S0
Pulse output:	optisch
Pulse rate:	2000 Imp/kWh (kvarh)
Maximum current (Imax):	32 A
With lock code:	nein
Rated voltage (Un) N-L:	230 V
Polart:	1-phasig
Tariff version:	Eintarif
Counter type:	elektronisch
Rated voltage (Un) L-L:	230 V
Shipping weight:	0,09 kg
Item weight:	0,09 kg
Dimensions ( Length × Width × Height ):	2,00 × 9,00 × 7,00 cm
