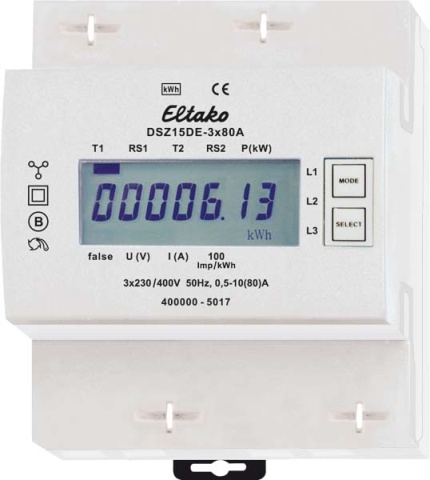

Eltako three-phase meter DSZ15DE-3x80A NEW

Item condition: New and in original packaging

Manufacturers: Eltako#
EAN: 4010312501719
Heiz24 article number: SP6907682
TARIC: 90283019
Country of origin: CN
Category: Mess- und Prüfgeräte

€ 98,95

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

150 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 150 Pcs. we can order for you

Pcs.

Maximum current 3x80A, stand-by loss only 0.5 Watt per path. Modular unit for mounting on DIN-EN 60715 TH35 rail. 4 divisions = 70mm wide, 58mm deep. Accuracy class B (1%). With S0 interface. The direct-measuring three-phase meter measures the active energy on the basis of the currents flowing between the inputs and outputs. The self-consumption of only a maximum of 0.5Watt active power per path is not measured and not displayed. 1, 2 or 3 phase conductors with currents up to 80A can be connected. The starting current is 4OmA. The N connection must be available. The 7-segment LC display can be read twice within two weeks even without power supply. The power consumption is indicated in the display by a bar that flashes 100 times per kWh. Can also be used as a 2-tariff meter as standard: By applying 230V to terminals E1/E2, the meter switches to a second tariff. To the right of the display are the MODE and SELECT keys, which are used to scroll through the menu according to the operating instructions. First, the background lighting switches on. Then the total active energy per tariff, the active energy of the resettable memory RS1 or RS2 as well as the instantaneous values of power, voltage and current per phase can be displayed. Error message (false): If an outer conductor is missing or the current direction is wrong, false and the corresponding outer conductor are shown in the display.

Item information	Value
Version:	Direktmessung
Suitable for:	Bezug/Lieferung
Protection class (IP):	IP20
Height:	82 mm
Mounting type:	REG
Width in units of division:	4
Display type:	digital
Accuracy class:	B
Backstop:	Ja
Wide:	70 mm
Depth:	58 mm
Frequency:	50 Hz
Calibrated:	nein
Execution of the interface:	sonstige
Number of posts:	7
Energy type:	Wirkleistung
Pulse type:	S0
Pulse output:	optisch
Pulse rate:	1000 Imp/kWh (kvarh)
Maximum current (Imax):	80 A
Rated voltage (Un) N-L:	230 V
Polart:	Vierleiter
Tariff version:	Zweitarif
Counter type:	elektronisch
Rated voltage (Un) L-L:	400 V
Shipping weight:	0,25 kg
Item weight:	0,25 kg
Dimensions ( Length × Width × Height ):	6,50 × 9,10 × 8,10 cm
