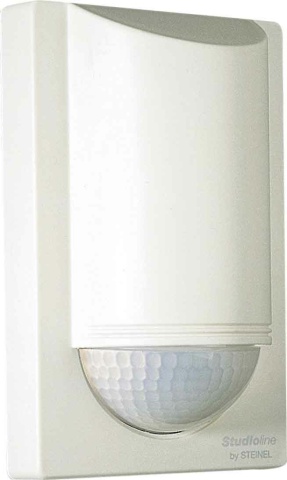

Steinel Infrared Motion Detector w.2Pyro Sensors IS 2180-2 ws NEW

"Fig. similar. , errors in texts and images excepted."

Steinel Infrared Motion Detector w.2Pyro Sensors IS 2180-2 ws NEW

Item condition: New and in original packaging

Manufacturers: Steinel#
EAN: 4007841603816
Heiz24 article number: SP1410054
TARIC: 85365080
Country of origin: MD
Category: Systemgebundene Elektronik (Wächter, Dimmer)

€ 78,05

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

6 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 6 Pcs. we can order for you

Pcs.

Beautiful, smart, powerful. Infrared motion detector IS 2180-2 for outdoors, ideal for building fronts and properties, medium-size business and outdoor facilities, ideal 2 m mounting height, 180° detection angle, range max. 12 m or max. 5 m (tangential), time and twilight threshold adjustable, continuous light operation for outdoor and indoor corner mounting.

PDF

Produktdatenblatt

Produktdatenblatt

Montageanleitung

Montageanleitung

Item information	Value
Version:	Bewegungsmelder
Surface protection:	sonstige
Colour:	weiß
Protection class (IP):	IP54
Material grade:	Thermoplast
Height:	120 mm 55 mm
Transparent:	nein
Mounting type:	Aufputz
Halogen-free:	Ja
Voltage type:	AC
Connection type:	sonstige
Material:	Kunststoff
Surface finish:	matt
RAL number (similar):	9010
Rated voltage:	240 V
Suitable for wall mounting:	Ja
Suitable for ceiling mounting:	nein
Constant light control:	nein
Antibacterial treatment:	nein
Wide:	78 mm
Depth:	55 mm
Temperature:	-20..50 °C
Frequency:	50 Hz
Response brightness adjustable:	ja
Max. Duty cycle:	15 min
Extension input:	ja
Teach function for response brightness:	nein
Animal track:	nein
Max. Switching capacity:	1000 W
Response sensitivity adjustable:	nein
Suitable for C-load:	ja
Switch-off delay:	300 s
Dimming function with dimmer insert:	nein
Alarm function:	nein
Response brightness:	2..2000 lx
Number of switching zones:	504
Detection field diameter on floor:	6 m
Angle of coverage horizontal:	180 °
Remote controllable:	nein
Suitable for wireless transmission:	nein
HVAC control:	nein
Max. Inrush current:	110 A
Max. Range frontal:	12 m
Max. Range to one side:	12 m
Min. duty cycle:	5 s
With DALI interface:	nein
With remote control:	nein
With signal unit:	ja
Optimum mounting height:	2 m
Sensor type:	passiv Infrarot
Staircase monitoring:	nein
Bypass switch:	ja
Undercrawl protection/backfield monitoring:	ja
Networkable:	ja
Forced shutdown:	ja
Forced switching on:	nein
Shipping weight:	0,20 kg
Item weight:	0,23 kg
Dimensions ( Length × Width × Height ):	9,00 × 9,00 × 13,50 cm
