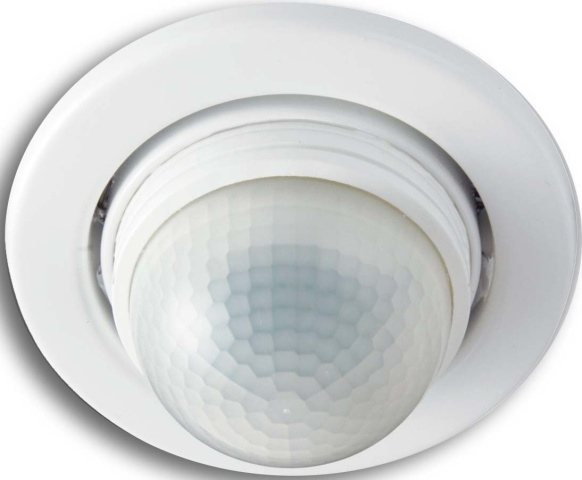

Steinel motion detector recessed ceiling IS D 360 NEW

"Fig. similar. , errors in texts and images excepted."

Steinel motion detector recessed ceiling IS D 360 NEW

Item condition: New and in original packaging

Manufacturers: Steinel#
EAN: 4007841601317
Heiz24 article number: SP6401110
TARIC: 85365080
Country of origin: RO
Category: Systemgebundene Elektronik (Wächter, Dimmer)

€ 97,56

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

2 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 2 Pcs. we can order for you

Pcs.

The compact class. Recessed ceiling motion detector IS D360 for indoors, ideal for installation in any standardised spot frame, mounting height up to 2.5 m, with the dimensions of an illuminant (e.g. GU10), 360° angle of detection, range max. 8 m (tangential), potential-free contact 50-250 volts.

PDF

Produktdatenblatt

Produktdatenblatt

Montageanleitung

Montageanleitung

Item information	Value
Version:	Bewegungsmelder
Surface protection:	sonstige
Colour:	weiß
Protection class (IP):	IP20
Material grade:	Thermoplast
Height:	82 mm
Transparent:	nein
Mounting type:	Unterputz sonstige
Halogen-free:	Ja
Voltage type:	AC
Connection type:	sonstige
Material:	Kunststoff
Surface finish:	matt
RAL number (similar):	9010
Rated voltage:	240 V
Suitable for wall mounting:	nein
Suitable for ceiling mounting:	Ja
Constant light control:	nein
Antibacterial treatment:	nein
Depth:	82 mm
Diameter:	83 mm
Temperature:	-20..50 °C
Frequency:	50 Hz
Installation length:	47 mm
Response brightness adjustable:	ja
Max. Duty cycle:	20 min
Extension input:	ja
Teach function for response brightness:	nein
Animal track:	nein
Max. Switching capacity:	1000 W
Response sensitivity adjustable:	nein
Suitable for C-load:	ja
Switch-off delay:	300 s
Dimming function with dimmer insert:	nein
Alarm function:	nein
Response brightness:	2..2000 lx
Number of switching zones:	720
Detection field diameter on floor:	8 m
Angle of coverage horizontal:	360 °
Remote controllable:	nein
Suitable for wireless transmission:	nein
HVAC control:	nein
Max. Inrush current:	110 A
Max. Range frontal:	8 m
Max. Range to one side:	8 m
Min. duty cycle:	5 s
With DALI interface:	nein
With remote control:	nein
With signal unit:	ja
Optimum mounting height:	2,5 m
Sensor type:	passiv Infrarot
Staircase monitoring:	nein
Bypass switch:	ja
Undercrawl protection/backfield monitoring:	ja
Networkable:	ja
Forced shutdown:	ja
Forced switching on:	nein
Shipping weight:	0,24 kg
Item weight:	0,24 kg
Dimensions ( Length × Width × Height ):	16,40 × 12,50 × 9,00 cm
