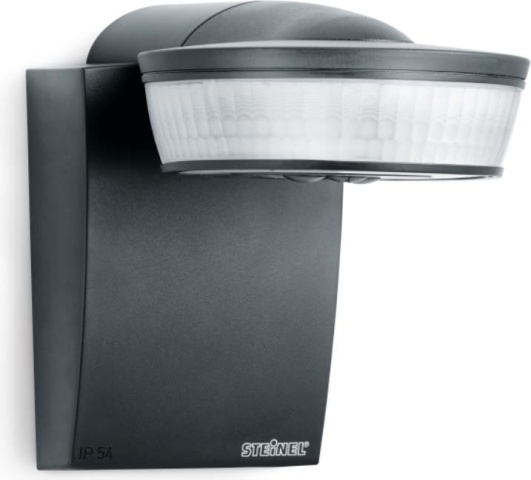

Steinel Sens IQ EVO infrared motion detector black NEW

"Fig. similar. , errors in texts and images excepted."

Steinel Sens IQ EVO infrared motion detector black NEW

Item condition: New and in original packaging

Manufacturers: Steinel#
EAN: 4007841029579
Heiz24 article number: SP6407483
TARIC: 85365080
Country of origin: RO
Category: Systemgebundene Elektronik (Wächter, Dimmer)

€ 150,34

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

2 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 2 Pcs. we can order for you

Pcs.

King of the infrared motion detectors. The revolutionary sensIQ for outdoors and indoors, ideal for house entrances, loading ramps, up to 5 m mounting height, 4-fold sensor system for optimum monitoring at a 300° angle of detection, 20 m range (tangential), range adjustment accurate to the metre in 3 independent directions, strong relay for high switching capacity. Remote control and corner wall bracket included.

PDF

Produktdatenblatt

Produktdatenblatt

Montageanleitung

Montageanleitung

Item information	Value
Version:	Bewegungsmelder
Surface protection:	sonstige
Colour:	schwarz
Protection class (IP):	IP54
Material grade:	Thermoplast
Height:	144 mm 172 mm
Transparent:	nein
Mounting type:	Aufputz
Halogen-free:	Ja
Voltage type:	AC
Connection type:	sonstige
Material:	Kunststoff
Surface finish:	matt
RAL number (similar):	9005
Rated voltage:	240 V
Suitable for wall mounting:	Ja
Suitable for ceiling mounting:	nein
Constant light control:	nein
Antibacterial treatment:	nein
Wide:	113 mm
Depth:	172 mm
Temperature:	-20..50 °C
Frequency:	50..60 Hz
Response brightness adjustable:	ja
Max. Duty cycle:	15 min
Extension input:	ja
Teach function for response brightness:	ja
Animal track:	nein
Max. Switching capacity:	2500 W
Response sensitivity adjustable:	nein
Suitable for C-load:	ja
Switch-off delay:	300 s
Dimming function with dimmer insert:	nein
Alarm function:	nein
Response brightness:	2..2000 lx
Number of switching zones:	1360
Detection field diameter on floor:	8 m
Angle of coverage horizontal:	300 °
Remote controllable:	ja
Suitable for wireless transmission:	nein
HVAC control:	nein
Max. Inrush current:	110 A
Max. Range frontal:	20 m
Max. Range to one side:	20 m
Min. duty cycle:	5 s
With DALI interface:	nein
With remote control:	ja
With signal unit:	ja
Optimum mounting height:	2 m
Sensor type:	passiv Infrarot
Staircase monitoring:	ja
Bypass switch:	ja
Undercrawl protection/backfield monitoring:	ja
Networkable:	ja
Forced shutdown:	ja
Forced switching on:	ja
Shipping weight:	0,49 kg
Item weight:	0,33 kg
Dimensions ( Length × Width × Height ):	21,00 × 12,00 × 16,00 cm
