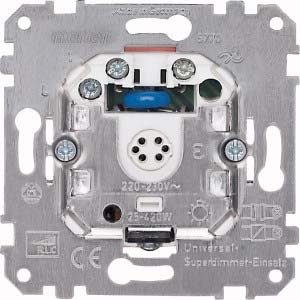

Merten Uni. super dimmer insert AC230V 20-420W/VA 577099 NEW

Item condition: New and in original packaging

Manufacturers: Merten##
EAN: 4011281893232
Heiz24 article number: SP0872132
TARIC: 85365080
Country of origin: LV
Category: Systemgebundene Elektronik (Wächter, Dimmer)

€ 137,86

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

For resistive, inductive and capacitive loads, e.g. incandescent lamps, dimmable wound transformers or electronic transformers. (phase control or phase cut). The universal dimmer automatically detects the connected load. Do not connect mixed loads. With memory function, can be switched off. Rated voltage: AC 230 V, 50 Hz. Minimum load: 25 VA. Maximum load: 420 VA. Neutral conductor: not required (2-wire system). To be completed with: System M sensor surface 5776xx, 5701xx, 5704xx, System surface 5737xx, AQUADESIGN 5738xx. TELE sensor surface System Surface 5709xx CONNECT radio sensor surface for dimmer inserts System M 5036xx, 5026xx, System Surface 5046xx Extension unit operation: With mechanical push-buttons. Extension unit operation: Extension unit insert 573999. Extension unit TELE insert 573998. Note: With CONNECT radio sensor surface for dimmer inserts the minimum load is 75 VA. In conjunction with the CONNECT radio system, the insert can only be used from version 3A. Version: 25-420 VA.

Item information	Value
Surface protection:	unbehandelt
Colour:	sonstige
Material grade:	sonstige
Transparent:	nein
Mounting type:	Unterputz
Halogen-free:	Ja
Connection type:	Schraubklemme
Material:	Metall/Kunststoff
Mounting type:	Krallen-/Schraubbefestigung
Rated voltage:	230 V
Dimming phase section:	Ja
Dimming phase angle control:	Ja
Compilation:	UP-Einsatz
Impact resistance:	IK02
Control voltage:	230 V
Frequency:	50..60 Hz
Extension input:	ja
Core cross-section:	1,5 mm²
App control via Bluetooth:	nein
Operating mode:	Tipptaster
Unit width:	73 mm
Unit height:	73 mm
Unit depth:	42 mm
IFTTT support available:	nein
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Load type:	universal
Light value memory:	ja
Min. depth of the device box:	46 mm
Series dimmer:	nein
Can be used with motion detector:	nein
Can be used with radio button:	ja
Can be used with IR button:	ja
Can be used with presence detector:	nein
Usable with button:	ja
Can be used with timer/timer:	nein
Suitable for protection class (IP):	IP20
Shipping weight:	0,10 kg
Item weight:	0,10 kg
Dimensions ( Length × Width × Height ):	7,60 × 7,60 × 5,30 cm
