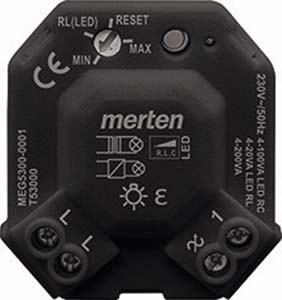

Merten Universal LED dimmer module black MEG5300-0001 NEW

Item condition: New and in original packaging

Manufacturers: Merten##
EAN: 4042811185107
Heiz24 article number: SP0865223
TARIC: 85365080
Country of origin: LV
Category: Schalter, Steckdosen, Perilex, Terko

€ 77,63

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

Universal LED dimmer module. For resistive, inductive or capacitive loads, e.g. dimmable LED lamps, incandescent lamps, dimmable wound transformers or electronic transformers. (phase control or phase cut). The universal dimmer module automatically detects the connected load. Do not connect mixed loads. The dimmer module is controlled with mechanical push-buttons in parallel operation. When installing the dimmer module in combination with a push-button, a deep (60 mm) installation box must be used. With screw terminals. Features: short-circuit proof, overload proof, overheating proof, soft start, memory function, automatic load recognition, min. / max. limitation adjustable, operating mode RL. Limitation adjustable, operating mode RL-LED mode adjustable. Rated voltage: AC 230 V, 50 Hz, switching capacity: LED lamps: 4-100 VA (RC mode), 4-20 VA (RL-LED mode). Incandescent lamps: 5-200 W, halogen lamps: 5-150 W (230 V) 5-200 VA (LV with dimmable wound transformer), 5-200 VA (LV with dimmable electronic transformer) Neutral conductor: not required. Connection terminals: Screw terminals for max. 2.5 mm², fuse protection: 16 A circuit breaker, dimensions: 44.5 x 39.5 x 20 (HxWxD).

Item information	Value
Surface protection:	unbehandelt
Colour:	grau
Material grade:	sonstige
Transparent:	nein
Mounting type:	Unterputz
Halogen-free:	Ja
Connection type:	Schraubklemme
Material:	Thermoplast
Surface finish:	matt
Mounting type:	sonstige
Rated voltage:	230 V
Dimming phase section:	Ja
Dimming phase angle control:	Ja
Compilation:	Komplettgerät für UP-Montage
Impact resistance:	IK02
Control voltage:	230 V
Frequency:	50 Hz
Extension input:	ja
Core cross-section:	2,5 mm²
App control via Bluetooth:	nein
Operating mode:	sonstige
Unit width:	40 mm
Unit height:	45 mm
Unit depth:	20 mm
IFTTT support available:	nein
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Load type:	universal und LED Retrofit
Light value memory:	ja
Max. Switching capacity LED:	100 W
Min. depth of the device box:	40 mm
Rated power inductive load:	4..200 VA
Rated power capacitive load:	4..200 VA
Rated power resistive load:	4..200 W
Series dimmer:	nein
Can be used with motion detector:	nein
Can be used with radio button:	nein
Can be used with IR button:	nein
Can be used with presence detector:	nein
Usable with button:	ja
Can be used with timer/timer:	nein
Suitable for protection class (IP):	IP20
Shipping weight:	0,03 kg
Item weight:	0,03 kg
Dimensions ( Length × Width × Height ):	7,40 × 7,40 × 3,20 cm
