"Fig. similar. , errors in texts and images excepted."

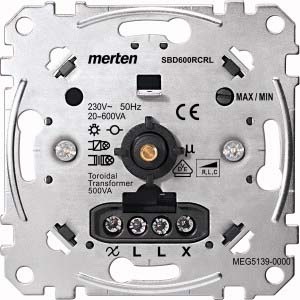

Merten universal rotary dimmer ins. 20-600 W/VA MEG5139-0000 NEW

Item condition: New and in original packaging

Manufacturers: Merten##
EAN: 4042811155469
Heiz24 article number: SP0852285
TARIC: 85365080
Country of origin: LV
Category: Systemgebundene Elektronik (Wächter, Dimmer)

€ 126,67

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

1 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 1 Pcs. we can order for you

Pcs.

For resistive, inductive and capacitive loads, e.g. incandescent lamps, dimmable wound transformers or electronic transformers. (phase control or phase cut). The universal dimmer automatically detects the connected load. Do not connect mixed loads. With push-button changeover switch. To be completed with central plate with rotary knob System M MEG5250-03xx/-04xx/-06xx, System Design MEG5250-40xx/-41xx/-42xx, System Design MEG5250-60xx LED lighting module for rotary dimmer MEG5300-0002. Note Information on dimming LED lamps is available on the Internet at Merten Dimmertest. http//www.merten.de/Dimmer-Test.dimmertest.0.html. Version 20-600 W/VA.

Item information	Value
Surface protection:	sonstige
Colour:	sonstige
Material grade:	sonstige
Transparent:	nein
Mounting type:	Unterputz
Halogen-free:	Ja
Connection type:	Schraubklemme
Material:	Metall/Kunststoff
Mounting type:	Krallen-/Schraubbefestigung
Rated voltage:	230 V
Dimming phase section:	Ja
Dimming phase angle control:	Ja
Compilation:	UP-Einsatz
Impact resistance:	IK02
Control voltage:	230 V
Frequency:	50 Hz
Extension input:	nein
Core cross-section:	1,5..2,5 mm²
App control via Bluetooth:	nein
Operating mode:	Dreh-/Druckknopf
Unit width:	71 mm
Unit height:	71 mm
Unit depth:	60 mm
IFTTT support available:	nein
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Load type:	universal
Light value memory:	nein
Min. depth of the device box:	40 mm
Rated power inductive load:	20..600 VA
Rated power capacitive load:	20..600 VA
Rated power resistive load:	20..600 W
Series dimmer:	nein
Can be used with motion detector:	nein
Can be used with radio button:	nein
Can be used with IR button:	nein
Can be used with presence detector:	nein
Usable with button:	nein
Can be used with timer/timer:	nein
Suitable for protection class (IP):	IP20
Shipping weight:	0,11 kg
Item weight:	0,11 kg
Dimensions ( Length × Width × Height ):	8,20 × 5,70 × 8,20 cm
