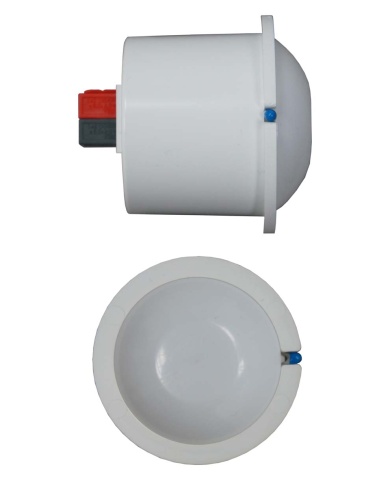

MDT technologies Recessed presence detector MR16 360° w.3 sensor SCN-P360E3.03 NEW

Item condition: New and in original packaging

Manufacturers: MDT_technologies#
EAN: 4251916111441
Heiz24 article number: SP6410234
TARIC: 85176200
Country of origin: DE
Category: NEW

€ 117,65

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

7 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 7 Pcs. we can order for you

Pcs.

Recessed MR16 360° presence detector with 3 sensors and temperature sensor. For installation in MR16 mounting frames for LED spots. With temperature sensor and LED night light. New extensive application. 3 pyro detectors with lens for presence detection. Adjustable standby and presence sensitivity for day, night and alarm. Range 11m Ø, presence 5m Ø. 3 light channels, sensors can be evaluated individually. 1 HVAC and 1 alarm/signalling channel. Short-time presence to reduce the follow-up time. Integrated temperature sensor. Input for external push-button with release time. Intelligent switch-over function for automatic and manual operation. Locking and priority function with release time. Extensive day/night function with 2nd switching object. Integrated LED night light. Orientation light (brightness and time adjustable). Avoidance of false alarms for alarm channel due to reduced sensitivity and adjustable observation window. Also suitable for swivelling MR16 mounting frames.

Item information	Value
Version:	Präsenzmelder
Surface protection:	sonstige
Colour:	weiß
Material grade:	Thermoplast
Transparent:	nein
Mounting type:	Unterputz
Material:	Kunststoff
Surface finish:	matt
Other bus systems:	ohne
Radio bus system:	nein
Bus system KNX:	ja
Bus system KNX radio:	nein
LON bus system:	nein
Powernet bus system:	nein
With bus coupling:	ja
Response brightness adjustable:	ja
Self-learning switch-off delay:	nein
Operating mode switch:	ja
Radio bidirectional:	nein
Max. Duty cycle:	240 min
Extension input:	nein
Teach function for response brightness:	nein
Animal track:	nein
Number of channels:	3
Detection field diameter on floor:	11 m
Angle of coverage horizontal:	360 °
Max. Range to one side:	5,5 m
Min. duty cycle:	1 s
Optimum mounting height:	2,5 m
Staircase monitoring:	ja
Shipping weight:	0,06 kg
Item weight:	0,06 kg
Dimensions ( Length × Width × Height ):	6,50 × 9,50 × 7,00 cm
