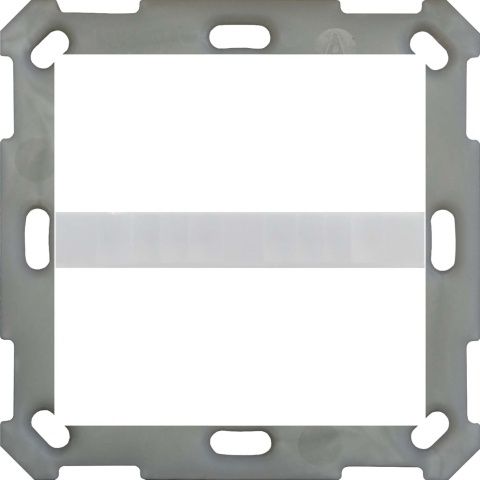

MDT technologies Motion detector pure white/matt SCN-BWM55.02 NEW

Item condition: New and in original packaging

Manufacturers: MDT_technologies#
EAN: 4251916111304
Heiz24 article number: SP6410221
TARIC: 85176200
Country of origin: DE
Category: Installations-Bus-Systeme

€ 114,63

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

2 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 2 Pcs. we can order for you

Pcs.

Motion detector/automatic switch 55, pure white matt. Mounting in switch box. Integrated bus coupling unit. Suitable for 55mm switch ranges e.g.: GIRA Standard 55, E2, E22, Event, Esprit or BERKER S1, B3, B7 or JUNG A 500, A PLUS, A CREATION, AS 500, A 550, A FLOW or MERTEN 1M, M-Smart, M-Plan, M-Pure. Motion detector with light sensor and 2 sensors. Detection angle H 180° / V 15°, range 6-10m Ø. Suitable for pets up to 12kg. Trigger sensitivity for day/night/presence individually adjustable. 2 light channels, 1 HVAC and alarm channel. Detection of direction of movement. Short-time presence to reduce overrun time. Master/slave function, scenes and logic functions. Integrated white LED night light. Day/night function, orientation light function. Locking and priority function with release time. External push-button input for automatic and manual operation. Recommended mounting height 1.05 - 1.20m. Integrated bus coupling unit.

Item information	Value
Version:	Bewegungsmelder
Surface protection:	sonstige
Colour:	weiß
Material grade:	Thermoplast
Transparent:	nein
Mounting type:	Unterputz
Material:	Kunststoff
Surface finish:	matt
RAL number (similar):	9010
Other bus systems:	ohne
Radio bus system:	nein
Bus system KNX:	ja
Bus system KNX radio:	nein
LON bus system:	nein
Powernet bus system:	nein
With bus coupling:	ja
Response brightness adjustable:	ja
Self-learning switch-off delay:	nein
Operating mode switch:	ja
Radio bidirectional:	nein
Max. Duty cycle:	240 min
Extension input:	nein
Teach function for response brightness:	nein
Animal track:	ja
Number of channels:	2
Min. depth of the device box:	35 mm
Detection field diameter on floor:	10 m
Angle of coverage horizontal:	180 °
Max. Range frontal:	5 m
Max. Range to one side:	5 m
Min. duty cycle:	1 s
Optimum mounting height:	1,1 m
Staircase monitoring:	ja
Vertical coverage angle:	15 °
Shipping weight:	0,06 kg
Item weight:	0,06 kg
Dimensions ( Length × Width × Height ):	4,10 × 10,40 × 7,60 cm
