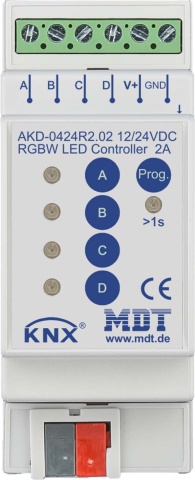

MDT technologies LED Controller 4-channel 2/4A, RGBW, 2TE, REG AKD-0424R2.02 NEW

Item condition: New and in original packaging

Manufacturers: MDT_technologies#
EAN: 4251916130084
Heiz24 article number: SP1415209
TARIC: 85365080
Country of origin: DE
Category: Installations-Bus-Systeme

€ 150,38

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

1 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 1 Pcs. we can order for you

Pcs.

LED controller 4-channel 2/4A, RGBW, 2TE REG. For 12/24V CV LED, 4 single channels or RGBW, TW. Extensive application. Absolute and relative dimming for HSV colour space and RGB. Tunable White colour temperature control. Selectable dimming curve and PWM frequency up to 1000Hz. Global and individual dimming speeds. Individual and predefined sequences (e.g. TV simulator). Repeat sequences for automatic colour control. For 12/24V CV LED, (common anode). Switchable load distribution: 4 channels 2A each or 1 channel 3.5A and 3 channels 1.5A each. Parallel operation of two channels with 4A. Operating modes: 4 x white, RGB, RGBW, Tunable White. Automatic colour temperature control Dim2Warm. Dynamic daylight control HCL (Biologically Effective Light). Automatic time-dependent dimming. Day/night function. Overcurrent and temperature monitoring.

Item information	Value
Version:	Dimmaktor
Protection class (IP):	IP20
Voltage:	12..24 V
Mounting type:	REG
Width in units of division:	2
Output power:	48 W
Number of outputs:	2
Other bus systems:	ohne
Radio bus system:	nein
Bus system KNX:	ja
Bus system KNX radio:	nein
LON bus system:	nein
Powernet bus system:	nein
With bus coupling:	ja
Frequency:	1000 Hz
Radio bidirectional:	nein
Extension input:	nein
With LED display:	ja
Bus module removable:	nein
On-site/manual operation:	ja
Parallel operation possible:	ja
Power add-on usable:	nein
Shipping weight:	0,10 kg
Item weight:	0,08 kg
Dimensions ( Length × Width × Height ):	4,10 × 10,10 × 6,90 cm
