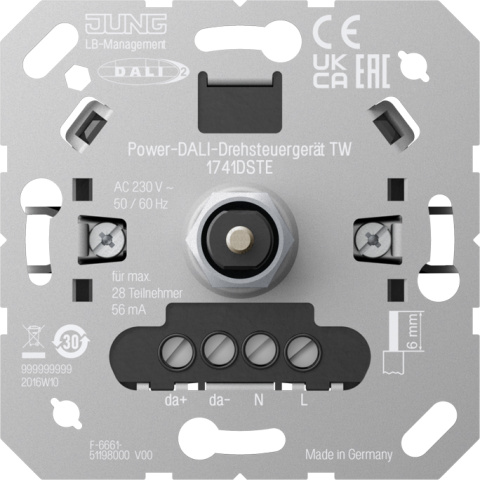

Jung Power DALI Rotary Control Unit TW 1741 DSTE NEW

Item condition: New and in original packaging

Manufacturers: Jung#
EAN: 4011377206588
Heiz24 article number: SP6413517
TARIC: 85365011
Country of origin: DE
Category: NEW

€ 140,77

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

17 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 17 Pcs. we can order for you

Pcs.

Intended use Brightness setting for luminaires with DALI/DALI-2 interface Setting the colour temperature for luminaires with DALI device type 8 for Tunable White in accordance with IEC 62386-209 Mounting in appliance box in accordance with EN 60670-1 Product features The TW power DALI rotary control unit supplies the control current for up to 28 DALI devices. Saving colour temperature limit values Saving the basic brightness and a switch-on brightness in accordance with IEC 62386-101 and -103 (single master) The device operates as a DALI-2 single master and must not be combined with other DALI controllers. Rated voltage: AC 230 V ~ Mains frequency: 50/60 Hz Power consumption: max. 2 W Ambient temperature: -5 ... +45 °C Nominal voltage DALI: DC 16 V (typ.) Permissible bus current: max. 250 mA Guaranteed bus current: 56 mA Short-circuit current: max. 61 mA Colour temperature setting: 2,000 ... 10.000 K Output current: max. 56 mA Number of DALI devices: max. 28

PDF

Montageanleitung

Montageanleitung

Item information	Value
Mounting type:	Unterputz
Dimming DALI:	Ja
Rated voltage:	230 V
Frequency:	50..60 Hz
Operating mode:	Taste
Light value memory:	ja
Can be used with motion detector:	ja
Can be used with radio button:	nein
Can be used with IR button:	nein
Can be used with presence detector:	ja
Usable with button:	ja
Can be used with timer/timer:	ja
Control current:	2 mA
Dimming 1-10 V:	nein
Dimming DSI:	nein
Dimming manufacturer-specific:	nein
Dimming with push-button:	nein
Dimming Touch and Dim:	nein
Shipping weight:	0,11 kg
Item weight:	0,09 kg
Dimensions ( Length × Width × Height ):	8,40 × 8,60 × 7,50 cm
