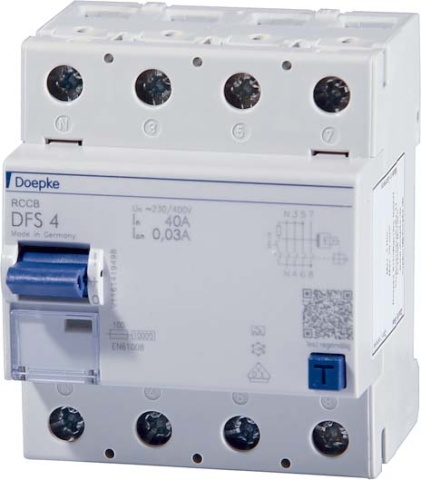

Doepke RCD switch DFS4 040-4/0,30-A NEW

Item condition: New and in original packaging

Manufacturers: Doepke##
EAN: 4014712091221
Heiz24 article number: SP5703292
TARIC: 85363030
Country of origin: DE
Category: Distribution and securing material

€ 61,45

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

437 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 437 Pcs. we can order for you

Pcs.

Residual current circuit breakers (RCCB) switch off the power supply when dangerously high fault currents occur. They thus protect persons, animals and installations. DFS 4 are two- or four-pole residual current circuit breakers for single- or three-phase mains. In the standard version, the compact devices are four pitch units narrow. They are available with many different residual current types and designs at rated currents up to 125 A. The large double-level terminals can also accommodate large conductor cross-sections. The tripped position of the multi-function switching toggle facilitates troubleshooting. The free labelling software helps with labelling. Type A switches are pulse and AC current sensitive. This function is independent of mains voltage. Units in standard version are designed for monitoring circuits with a rated voltage of 230 V/400 V and a rated frequency of 50 Hz. Features: mains- and auxiliary voltage-independent tripping
sensitive for AC and pulsating DC residual currents (type A) small size for all rated currents
high short-circuit resistance
double-sided double-level terminals for large conductor cross-section and busbar connection
switching position indicator
viewing window for labelling labels
multi-function switching toggle with three positions: &quot
on&quot
, &quot
off&quot
, &quot
triggered&quot

connection C1 neutral conductor position left
type of mounting: quick-fixing on mounting rail
mounting position any
supply direction any
areas of application: Power supplies for residential and commercial buildings as well as industrial plants with TN-S, TT and TN-C-S networks. In IT systems, residual current circuit-breakers of this series can be provided for disconnection in the event of a second fault
Excluded is the use in TN-C systems and for the protection of systems in which electronic equipment can cause smooth DC residual currents or residual currents with frequencies not equal to 50 Hz. Comprehensive protection is not provided here. For such applications, we recommend our all-current sensitive residual current circuit breakers (type B or B+).

PDF

Produktdatenblatt

Produktdatenblatt

Gebrauchsanleitung

Gebrauchsanleitung

Item information	Value
Protection class (IP):	IP20
Mounting type:	DIN-Schiene
Voltage type:	AC
Number of poles:	4
Width in units of division:	4
Frequency:	50 Hz
Connectable conductor cross-section solid:	1,5..50 mm²
Connectable conductor cross section stranded:	1,5..50 mm²
Rated voltage:	400 V
Rated insulation voltage Ui:	400 V
Installation depth:	69 mm
Rated current:	40 A
Pollution level:	2
Rated impulse withstand voltage Uimp:	4 kV
Ambient temperature during operation:	-25..40 °C
Additional equipment possible:	ja
Short circuit strength (Icw):	10 kA
Rated residual current:	0,3 A
Residual current type:	A
Short time delayed type:	nein
With locking device:	nein
Selective type:	nein
Surge current resistance:	0,25 kA
Shipping weight:	0,40 kg
Item weight:	0,40 kg
Dimensions ( Length × Width × Height ):	9,00 × 7,50 × 8,00 cm
