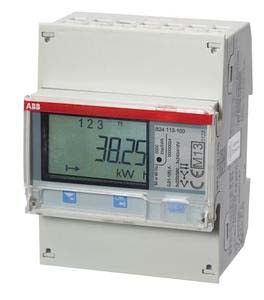

ABB Stotz S&J Transformer Meter M-Bus B24 113-100 NEW

Item condition: New and in original packaging

Manufacturers: ABB
EAN: 7392696001793
Heiz24 article number: SP5710300
TARIC: 90283019
Country of origin: IT
Category: Sicherungsautomaten, SHL,FI und sonst. Einbaugeräte

€ 426,69

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

Three-phase meter for measuring a three-wire or four-wire three-phase network via a CT transformer connection (transformer ratio for current configurable) up to a maximum of 6 A. The following values are output via a seven-segment display with up to 7 digits: Active energy (class 1), powers, currents, voltages (L-L, L-N) and frequency both per phase and overall. Communication can take place via the integrated M-Bus interface or via the infrared interface for connecting a KNX module. The energy meter has one output. This can be used either as a pulse output for outputting the active energy or as an alarm output. Up to 25 alarm values (threshold values with time delay) can be set here. The meter is calibrated according to MID and approved according to IEC. The installation width is 4 DIN modules.

Item information	Value
Version:	Messwandler
Suitable for:	Bezug
Protection class (IP):	IP20
Height:	97 mm 26,5 mm
Mounting type:	REG
Width in units of division:	4
Display type:	digital
Accuracy class:	B
Backstop:	Ja
Wide:	70 mm
Depth:	65 mm
Frequency:	50..60 Hz
Protection class (NEMA):	sonstige
Rated current (In):	1 A 6 A
Calibrated:	ja
Execution of the interface:	M-Bus
Number of posts:	7
EDL40 signature:	nein
Energy type:	Wirkleistung
Pulse type:	S0
Pulse output:	elektrisch
Pulse rate:	1..999999 Imp/kWh (kvarh)
Maximum current (Imax):	6 A
Measurement type Load profile:	nein
With lock code:	nein
Rated voltage (Un) N-L:	230..240 V
Polart:	Vierleiter
Tariff version:	Eintarif
Counter type:	elektronisch
Approval:	Measuring Instruments Directive
Rated voltage (Un) L-L:	380..415 V
Shipping weight:	0,34 kg
Item weight:	0,27 kg
Dimensions ( Length × Width × Height ):	9,40 × 10,00 × 6,80 cm
