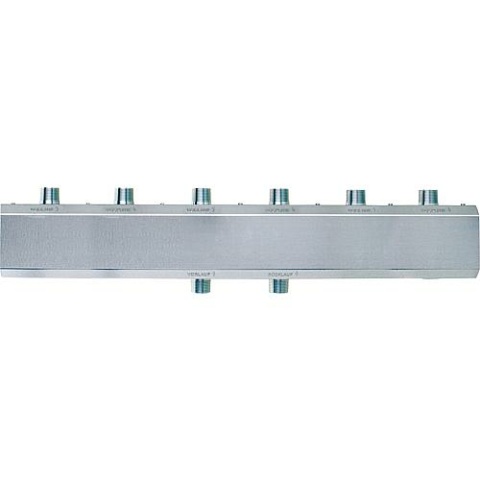

Weinmann & Schanz boiler manifold type HV 70-6 6 heating elements, incl. insulation 1"", steel swivelled NEW

"Fig. similar. , errors in texts and images excepted."

Weinmann & Schanz boiler manifold type HV 70-6 6 heating elements, incl. insulation 1"", steel swivelled NEW

Item condition: New and in original packaging

Manufacturers: Weinmann & Schanz
Heiz24 article number: WS9000761
TARIC: 84818099
Country of origin: DE
Category: Heating manifold

€ 393,70

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 4 - 7 Workdays (DE - foreign countries differ)

1 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 4 - 7 workdays (DE - foreign countries differ)

more than 1 Pcs. we can order for you

Pcs.

Boiler manifold
- Compact design with integrated flow and return
- Group outlets next to each other
- Pressure-tested and galvanised
- Operating pressure: max. 6 bar
- Flow temperature: max. 90°C
- Pressed-in flow and return labelling in the sheet steel casing
- Heating water flow rate: up to 3.3 m³/h
- Output at ?t=20°C: up to 75 kW
- Flow chamber is located in the return chamber
- Boiler connections at the bottom: DN32 (1 1/4") AG nipple
- Group connections: DN25 (1") AG nipple
- Lateral connection in the flow pipe: DN20 (3/4") IG socket for KFE valve, expansion vessel etc.
- Insulation (25 mm) with galvanised sheet steel jacket (0.60 mm)

PDF

90_007_57--DBL-01-de.pdf

Datenblatt

90_007_57--DBL-01-de.pdf

Item information	Value
Type:	HV 70-6
l [mm]:	1508
A [mm]:	875
Number of heating groups:	6
Shipping weight:	17,82 kg
Item weight:	17,82 kg
Dimensions ( Length × Width × Height ):	158,00 × 19,00 × 18,00 cm
LaNr.:	90 007 61
