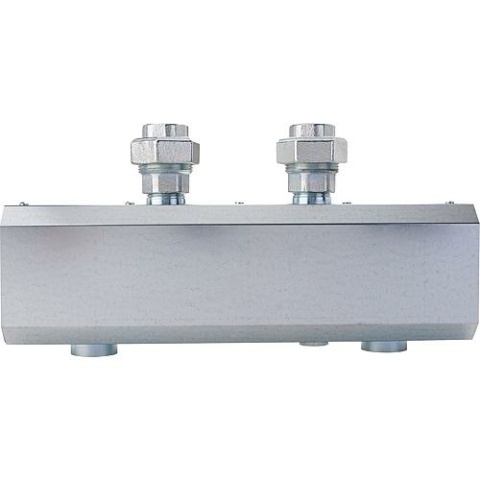

MIK Hydraulic separator HW 60-125x11/4"" Incl. insulation NEW

"Fig. similar. , errors in texts and images excepted."

MIK Hydraulic separator HW 60-125x11/4"" Incl. insulation NEW

Item condition: New and in original packaging

Manufacturers: MIK
Heiz24 article number: WS9000765
TARIC: 84818099
Country of origin: DE
Category: Soft

€ 113,63

incl. 19% VAT , plus

Old price: € 185,10

Choose tax zone / country of delivery

Must be ordered. Ready for shipment in 2 days after order.

4 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 2 - 2 workdays (DE - foreign countries differ)

- Exchange chamber made of VK pipe 60 x 60
- Bottom: Boiler circuit sockets
- Top: Connection nipple for consumer circuit with screw connection (IG/IG)
- Socket DN15 (1/2") IG for temperature sensor
- Insulation: 25 mm
- Exchange chamber made of square pipe
- Pressure-tested and galvanised
- Operating pressure max. 6 bar
- Flow temperature max. 90°C
- Insulation with galvanised sheet steel jacket
How a hydraulic separator works:
Hydraulic separators are used when one or more heat generator circuits (with their own pump) and one or more consumer circuits (with their own distributor pump) are operated in a system.
Under such operating conditions, the pumps can influence each other, which can lead to unwanted changes in flow rate and delivery head. By using hydraulic separators, the individual circuits are hydraulically decoupled from each other so that they can be operated independently of each other.

PDF

90_007_64--DBL-01-de.pdf

Datenblatt

90_007_64--DBL-01-de.pdf

Item information	Value
suitable for:	Verteiler HV 70
Delivery rate:	bis 3 m³/h
Connections:	DN 32 (1 1/4") IG (Vor- & Rücklauf)
Shipping weight:	5,36 kg
Item weight:	5,36 kg
Dimensions ( Length × Width × Height ):	41,00 × 18,20 × 13,60 cm
LaNr.:	90 007 65
