"Fig. similar. , errors in texts and images excepted."

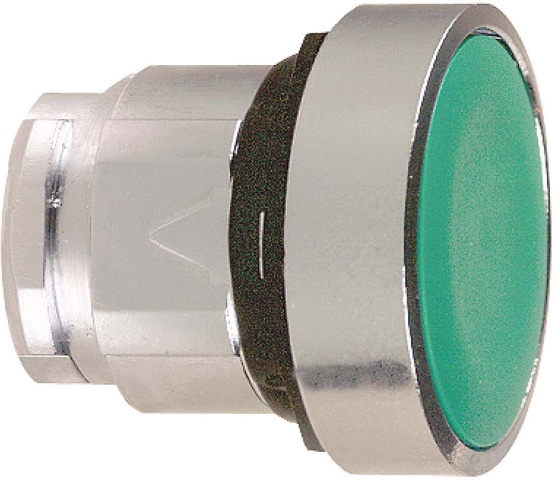

Schneider Electric Pushbutton flat, gn ZB4BA3 NEW

Item condition: New and in original packaging

Manufacturers: Schneider_Electric##
EAN: 3389110895742
Heiz24 article number: SP0736356
TARIC: 85389099
Country of origin: FR
Category: Industrial Technology/Automation

€ 4,73

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

10 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 10 Pcs. we can order for you

Pcs.

Front element for Harmony ZB4 pushbutton. Front green, cover chrome-coated metal, unlabelled. Front element, flat, round, without detent. Dimensions (WxHxD) 29x29x28 mm, mounting diameter 22 mm. Mechanical life 10000000 cycles. Head shape round, standard. With high vibration resistance and chemical resistance, ambient temperature -40 to +70 degrees C. The modular metal range with 22mm mounting dimension combines easy installation, efficiency and modern design. CSA, DNV, BV, GL, LROS (Lloyds register of shipping), RINA, UL listed certifications. Product standards according to JIS C 4520, UL 508, EN/IEC 60947-5-5, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4.

Item information	Value
With protective cover:	nein
Protection class (IP), front side:	IP66
Hole diameter:	22,5 mm
Number of command posts:	1
Lens design:	rund
Knob design:	flach
Labeled:	nein
Button colour:	grün
Front ring colour:	Chrom
Suitable for lighting:	nein
With front ring:	ja
Switching function latching:	nein
Protection class (NEMA), front side:	13
Keying:	ja
Material of the front ring:	Metall
Shipping weight:	0,03 kg
Item weight:	0,03 kg
Dimensions ( Length × Width × Height ):	5,40 × 3,40 × 4,80 cm
