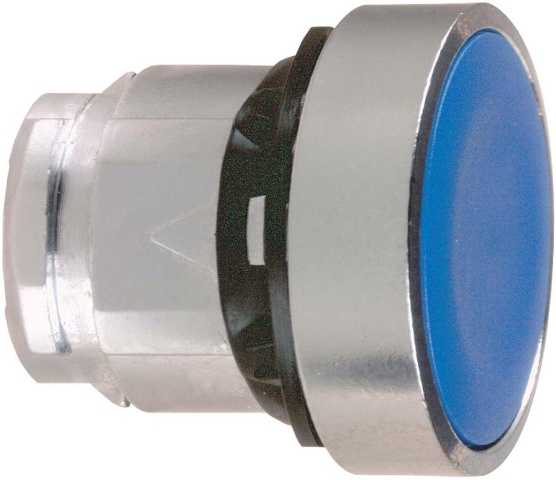

Schneider Electric Pushbutton flat, bl ZB4BA6 NEW

Item condition: New and in original packaging

Manufacturers: Schneider_Electric##
EAN: 3389110887495
Heiz24 article number: SP0736511
TARIC: 85389099
Country of origin: FR
Category: Industrial Technology/Automation

€ 4,73

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

Front element for Harmony ZB4 pushbutton. Front blue, cover chrome-coated metal, unlabelled. Front element, flat, round, without detent. Dimensions (WxHxD) 29x29x28 mm, mounting diameter 22 mm. Mechanical life 10000000 cycles. Head shape round, standard. With high vibration resistance and chemical resistance, ambient temperature -40 to +70 degrees C. The modular metal range with 22mm installation dimension combines easy installation, efficiency and modern design. Certifications according to GL, BV, DNV, LROS (Lloyds register of shipping), CSA, UL listed, RINA. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-5, UL 508, JIS C 4520, EN/IEC 60947-5-4, CSA C22.2 No 14.

Item information	Value
With protective cover:	nein
Protection class (IP), front side:	IP66
Hole diameter:	22,5 mm
Number of command posts:	1
Lens design:	rund
Knob design:	flach
Labeled:	nein
Button colour:	blau
Front ring colour:	Chrom
Suitable for lighting:	nein
With front ring:	ja
Switching function latching:	nein
Protection class (NEMA), front side:	13
Keying:	ja
Material of the front ring:	Metall
Shipping weight:	0,03 kg
Item weight:	0,03 kg
Dimensions ( Length × Width × Height ):	5,40 × 4,40 × 3,40 cm
