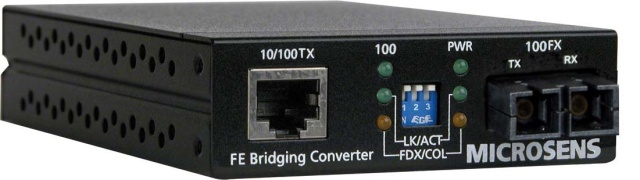

Microsens Media Converter 10/100TX 100FX 13MSC MS400210 NEW

Item condition: New and in original packaging

Manufacturers: Microsens
EAN: 4011868202105
Heiz24 article number: SP3803563
TARIC: 85176200
Country of origin: CN
Category: DNT Data Network Technology

€ 74,68

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

6 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 6 Pcs. we can order for you

Pcs.

This Fast Ethernet Bridge allows copper-based Ethernet networks to be coupled via fibre optic connections. The fibre optic connection allows very long distances to be bridged and at the same time provides an interference-prone and galvanically decoupled connection. The integrated 10/100 Mbit/s autonegotiation function on the copper interface enables connection of older networks with low data rates. On the optical side, versions for multimode or monomode fibres are available. The RJ-45 connector automatically configures itself to the highest possible transmission speed for 10 Mbps (10Base-T Ethernet), 100 Mbps (100Base-TX Fast Ethernet). In addition to the version for multimode fibres (100Base-FX), a version for single-mode fibres (100Base-LX) is also available. Compact Fast Ethernet Bridge, compatible with IEEE 802.3, 802.3u standards, automatic configuration via autonegotiation, flow control in accordance with IEEE802.3x

PDF

Produktdatenblatt

Produktdatenblatt

Item information	Value
Height:	26 mm
Ethernet:	Ja
Number of 10/100 Mbps RJ45 ports:	1
Power over Ethernet:	nein
Type:	Einzelgerät
Supply voltage type:	DC
Wide:	70 mm
Depth:	94 mm
Supply voltage for DC:	5 V
Wall/direct mounting possible:	ja
Suitable for 482.6 mm (19 inch) mounting:	nein
Managed:	nein
Fast Ethernet:	ja
Gigabit Ethernet:	nein
Number of 100 Mbps SC ports:	100Base-FX SC
Shipping weight:	0,31 kg
Item weight:	0,25 kg
Dimensions ( Length × Width × Height ):	23,90 × 13,30 × 5,50 cm

There are no reviews yet.
