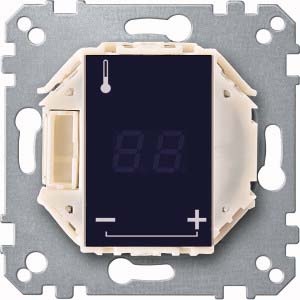

Merten temperature controller insert univ. with display MEG5775-0000 NEW

Item condition: New and in original packaging

Manufacturers: Merten##
EAN: 4042811167622
Heiz24 article number: SP0855887
TARIC: 90321020
Country of origin: LV
Category: Systemgebundene Elektronik (Wächter, Dimmer)

€ 115,46

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

The universal temperature controller insert with touch display can be used to control the room or floor temperature. It is operated via a touch display. Electric floor heating systems, radiators or actuators can be connected to the controller. The thermostat can be operated in three different modes:. Room air mode: The internal temperature sensor detects the room temperature and regulates it. Floor mode: The floor sensor, available as an accessory, detects the floor temperature and controls the electric floor heating. Dual mode: The internal temperature sensor detects the room temperature and controls it. At the same time, the floor sensor monitors the floor temperature and limits it to the preset value of the maximum temperature. This mode is particularly recommended for temperature-sensitive parquet or laminate floors. Rated voltage: AC 230 V, 50 Hz Rated load (Ohmic): 16 A Rated load (inductive): 1 A, cos U 0.6 Energy class: IV 2 %. To be completed with: Central plate for universal temperature controller insert with touch display System M MEG5775-03xx/-04xx, System Design MEG5775-60xx, Antik MEG5775-40xx/-41xx. Accessories: Remote sensor for universal room thermostat with touch display MEG5775-0003.

Item information	Value
Version:	An/Aus
Operation:	Taste
Colour:	sonstige
Protection class (IP):	IP20
Connection:	drei-/vieradrig
Height:	71 mm
Mounting type:	Unterputz/ Aufputz
With display:	Ja
Measuring range:	5..35 °C
Wide:	71 mm
Depth:	26 mm
Diameter:	57 mm
Control characteristics:	sonstige
Explosion-proof:	nein
Protection class (NEMA):	1
Contact design:	Schließer (NO)
Transducer/sensor version:	sonstige
Max. Contact load:	16 A
Max. Voltage of the contacts:	230 V
Type of power supply:	230 V AC
Difference adjustable:	nein
Suitable for heating:	ja
Suitable for cooling:	nein
With receiver:	nein
With noise level indicator:	nein
With drinking water circuit:	nein
External sensor:	ja
Temperature readable:	ja
Thermal feedback:	ohne
Number of outputs heating:	1
Differential value:	0..0,9 K
Temperature controller class:	IV
Power consumption in standby mode (solstandby):	0 W
Shipping weight:	0,12 kg
Item weight:	0,12 kg
Dimensions ( Length × Width × Height ):	7,50 × 7,50 × 5,20 cm
