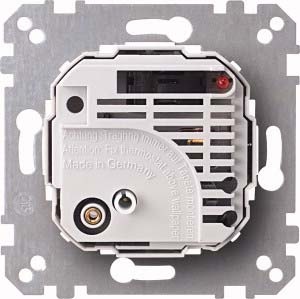

Merten RT controller insert AC230V 10(4)A 536302 NEW

Item condition: New and in original packaging

Manufacturers: Merten##
EAN: 4011281897407
Heiz24 article number: SP0803648
TARIC: 90321020
Country of origin: DE
Category: Systemgebundene Elektronik (Wächter, Dimmer)

€ 67,58

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

28 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 28 Pcs. we can order for you

Pcs.

With thermal feedback. Fourth terminal for night setback. Rated current heating 10 (4) A. Contact NC. To be completed with central plate for room thermostat insert with switch System M 5348xx, 5361xx, System Surface 5397xx Scope of delivery Room thermostat insert, protective cover and screws. Version AC 230 V.

Item information	Value
Version:	An/Aus
Operation:	Dreh
Colour:	sonstige
Protection class (IP):	IP30
Connection:	drei-/vieradrig
Height:	73 mm
Mounting type:	Unterputz/ Aufputz
With display:	nein
Measuring range:	5..30 °C
Wide:	73 mm
Depth:	37 mm
Diameter:	57 mm
Control characteristics:	sonstige
Explosion-proof:	nein
Protection class (NEMA):	1
Contact design:	Schließer (NO)
Transducer/sensor version:	Bimetall
Max. Contact load:	10 A
Max. Voltage of the contacts:	230 V
Type of power supply:	230 V AC
Difference adjustable:	nein
Suitable for heating:	ja
Suitable for cooling:	nein
With receiver:	nein
With noise level indicator:	nein
With drinking water circuit:	nein
External sensor:	nein
Temperature readable:	nein
Thermal feedback:	parallel
Number of outputs heating:	1
Differential value:	0,5 K
Temperature controller class:	I
Power consumption in standby mode (solstandby):	0 W
Shipping weight:	0,08 kg
Item weight:	0,08 kg
Dimensions ( Length × Width × Height ):	7,60 × 7,60 × 5,30 cm
Anschluss:	drei-/vieradrig
