"Fig. similar. , errors in texts and images excepted."

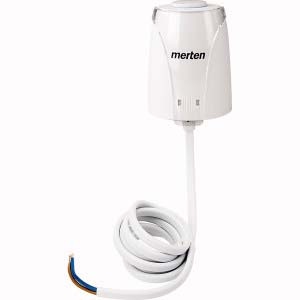

Merten Thermoele. Actuator 639125 NEW

Item condition: New and in original packaging

Manufacturers: Merten##
EAN: 4042811049522
Heiz24 article number: SP0828025
TARIC: 85389099
Country of origin: DE
Category: Installations-Bus-Systeme

€ 48,82

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

9 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 9 Pcs. we can order for you

Pcs.

Thermoelectric valve drive 230 V. Thermoelectric valve drive for opening and closing valves. For 2-point or PWM control of heating, air-conditioning and ventilation systems, individual room control of panel heating, control of heating circuit distributors. For radiators, heating convectors, chilled ceilings. Operation is via the heating actuator REG-K/6x24/230/0.16A, fan coil actuator REG-K or a room thermostat (230 V) with 2-point or PWM output. Valve adapters enable compatibility with a wide range of valve bodies and heating circuit distributors. Functions: First-Open function: The drive is set to de-energised open at the factory. This allows the heating to be operated during the shell construction phase. De-energised closed. Function display (open, closed, intermediate positions). Adjustment controller. Pluggable connection cable. Pluggable mounting. Supply voltage: AC 230 V, 50/60 Hz. Starting current: max. 350 mA for max. 100 ms. Power consumption: 1 W. Stroke: approx. 4 mm. Running time: 3.5 min for 4 mm. Positioning force: 100 N ± 5 %. Temperature of circulating medium: 0-100°C. Protection class: IP 54 / II, in all mounting positions. Connecting cable: 1 m, 2x0.75 mm², pluggable. Dimensions: 59.2x44.3x56 mm (HxWxD). Colour: polar white.

Item information	Value
Protection class (IP):	IP 54
Mounting type:	Heizkörperventil
Rated voltage:	230 V
Other bus systems:	ohne
Bus voltage supply:	nein
Radio bus system:	nein
Bus system KNX:	nein
Bus system KNX radio:	nein
LON bus system:	nein
Powernet bus system:	nein
With bus coupling:	nein
Temperature and stroke display:	nein
Radio bidirectional:	nein
Master/slave function:	nein
Buttons for manual operation on the drive:	nein
Built-in temperature controller with continuous control:	nein
Shipping weight:	0,14 kg
Item weight:	0,14 kg
Dimensions ( Length × Width × Height ):	8,30 × 5,30 × 10,10 cm
