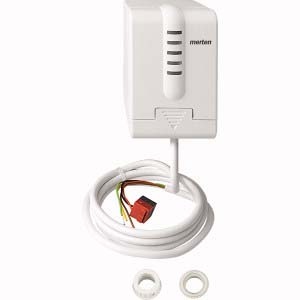

Merten KNX Actuator with LED 2 inputs MEG6921-0001 NEW

Item condition: New and in original packaging

Manufacturers: Merten##
EAN: 4042811166014
Heiz24 article number: SP6509688
TARIC: 85389099
Country of origin: DE
Category: Installations-Bus-Systeme

€ 247,59

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

11 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 11 Pcs. we can order for you

Pcs.

KNX valve drive with status LED and 2 inputs. EMO actuator for heating valves. The device has 2 inputs for e.g. window contacts or presence detectors. Valve stroke indication via red LEDs. With automatic valve stroke detection. The valve drive can be connected directly to the KNX. A separate power supply is not required. With integrated bus coupling unit. Current consumption: max. 10 mA. Stroke: max. 7.5 mm. Positioning force: 120 N. Protection class: III according to EN 60730. Installation: Snapped onto the valve adapter. Dimensions: (H x W x D) 82 x 50 x 65 mm. Contents: With 2 valve adapters (VA10/VA78).

Item information	Value
Protection class (IP):	IP 21
Mounting type:	Heizkörperventil
Rated voltage:	24 V
Other bus systems:	ohne
Bus voltage supply:	ja
Radio bus system:	nein
Bus system KNX:	ja
Bus system KNX radio:	nein
LON bus system:	nein
Powernet bus system:	nein
With bus coupling:	ja
Temperature and stroke display:	ja
Radio bidirectional:	nein
Number of digital inputs:	2
Master/slave function:	nein
Buttons for manual operation on the drive:	nein
Built-in temperature controller with continuous control:	nein
Shipping weight:	0,28 kg
Item weight:	0,28 kg
Dimensions ( Length × Width × Height ):	16,00 × 12,80 × 8,20 cm
