Maico flush-mounted housing for kitchens, bathrooms, class B2 ER - UP/G NEW

"Fig. similar. , errors in texts and images excepted."

Maico flush-mounted housing for kitchens, bathrooms, class B2 ER - UP/G NEW

Item condition: New and in original packaging

Manufacturers: Maico#
EAN: 4012799939955
Heiz24 article number: SP1600187
TARIC: 84149000
Country of origin: DE
Category: Tools, fans, transformers, pumps

€ 51,86

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

9 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 9 Pcs. we can order for you

Pcs.

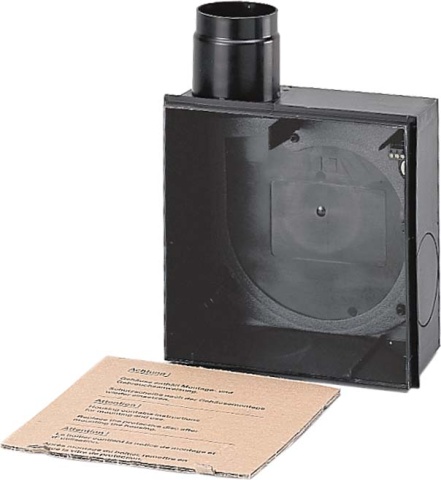

In-wall ventilation: Flush-mounted housing to accommodate a fan ER 60, ER 100. Installation in bathrooms, WCs and flat kitchens. Plastic outlet spigot with automatic plastic non-return damper. The plastic non-return damper also serves as a cold smoke damper. Connection diameter DN 75/80. Easily removable non-return flap, thus simple and quick cleaning. Can be installed inside and outside the chamber in walls and ceilings. Low installation depth of the flush-mounted housing and cover. Approved for discharge direction upwards, right or left. With plaster protection cover. Practical snap-on mounting and electrical plug connection for quick installation of the fan in the housing. Predetermined breaking points in the housing for use of the ER-AS extraction nozzle for WC seat ventilation. Plastic parts normally flammable according to class B 2. General building authority approval, approval no.: Z-51.1-7. Approval certificates on request or on our homepage www.maico-ventilatoren.com.Artikel: ER - UP/G, Construction: plastic outlet spigot on the side with self-acting plastic non-return damper, without fire protection casing, second room connection right/left/bottom possible, Air direction: venting, Installation location: wall/ceiling, Installation type: flush-mounted, Material: plastic, Colour: black, Weight: 0.475 kg, weight with packaging: 0.735 kg, fire protection: no, air discharge direction: lateral, connection diameter: 75 mm / 80 mm, width: 225 mm, height: 225 mm, depth: 108 mm, width with packaging: 320 mm, height with packaging: 240 mm, depth with packaging: 130 mm, approval number: Z-51.1-7

PDF

Item information	Value
Colour:	schwarz
Enclosure material:	Kunststoff
Connection diameter:	75 mm
Installation dimension width:	225 mm
Installation dimension-height:	225 mm
Installation depth:	108 mm
With fire protection barrier:	nein
Shipping weight:	0,74 kg
Item weight:	0,48 kg
Dimensions ( Length × Width × Height ):	32,00 × 24,00 × 13,00 cm
