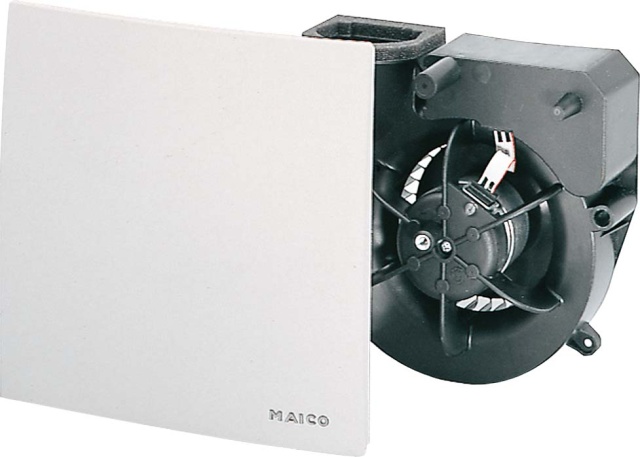

Standard version: ER 100: Speed controllable. ER 60: Not speed controllable. Fan with cover and ISO Coarse > 30 % (G2) filter for installation in flush-mounted housing. For single-room or two-room ventilation with a single fan (exception: version H). Easy filter change without tools. Cover can be rotated by +- 5°, so compensation is possible if the housing is installed at an angle. Quick and easy installation of the fan in the casing via the snap-on mounting and the electrical plug connection. Colour traffic white similar to RAL 9016. All MAICO ER units comply with protection class IP X5 and can therefore be installed in area 1 according to DIN VDE 0100-701, even with jets of water. For details, see planning information. Protection class II. The extremely steep characteristic curve shows the high pressure capacity of the ER fans. Robust energy-saving capacitor motor. Motor with thermal overload protection. Maintenance-free, with ball bearings closed on both sides. Volume flow characteristic curve and leakage air rate from Bayern e.V. Leakage air volume flow < 0.01 m3/h. Shaft level difference according to DIN 4109, from IAB Oberursel. With VDE mark.Article: ER 60, Design: standard version, Delivery volume: 62 m3/h, Speed: 1250 1/min, Air direction: venting, Speed controllable: no, SEC average: -3.72 kWh/(m2*a), Voltage type: alternating current, Rated voltage: 230 V, mains frequency: 50 Hz, power consumption: 21 W, IMax: 0.16 A, protection class: IP X5, mains lead: 3 / 1.5 mm2, installation location: wall / ceiling, installation type: flush-mounted, system type: decentralised, material: plastic, colour: traffic white, similar to RAL 9016, weight: 1.5 kg, weight with packaging: 1.78 kg, filter class: ISO Coarse > 30 % (G2), air outlet direction: lateral, width: 250 mm, height: 250 mm, depth: 140 mm, width with packaging: 285 mm, height with packaging: 285 mm, depth with packaging: 155 mm, fluid temperature at IMax: 40 °C, sound pressure level: 36 dB(A) / specification according to DIN 18017-3 with an equivalent absorption area AL = 10 m2, nominal width: 75 mm / 80 mm
