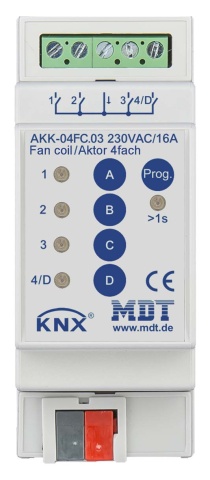

MDT technologies Switch actuator 4-fold 2TE REG,16A,230VAC,Comp. AKK-04FC.03 NEW

Item condition: New and in original packaging

Manufacturers: MDT_technologies#
EAN: 4251916130220
Heiz24 article number: SP6522587
TARIC: 85365080
Country of origin: DE
Category: Installations-Bus-Systeme

€ 156,52

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

Switch actuator 4-fold, 2TE, REG, 16A, 230VAC, Compact, 70MikroF, 10EVG, Fan coil. Compact version with bistable relay current max. 16A with capacitive load, max 70MikroF/10EVG. Fan coil operating mode:. Control of 3/4-speed fans/fan coil units. Additional switching output for 3-stage operation. Outputs interlocked with each other (alternating switching). Direct operation via three 1-bit objects or single 1-bit object (+/-). Automatic operation via 1byte control value (0-100%). Can be used for 2-pipe/4-pipe systems. Output objects for controlling heating/cooling valves. Day/night function for limiting the ventilation level at night. Emergency operation in the event of failure of the control value Operating mode switching actuator:. Normally open and normally closed operation. Time functions (switch-on/switch-off delay). Staircase lighting function with adjustable advance warning time. Feedback function (active/passive) for all channels. Logical links, 8 scenes per channel. Central functions and disable objects for priority control. Adjustable behaviour on bus voltage failure/restoration. Fast download of the application (long frame support for ETS5).

Item information	Value
Protection class (IP):	IP20
Mounting type:	REG
Max. Switching current:	16 A
Width in units of division:	2
Other bus systems:	ohne
Radio bus system:	nein
Bus system KNX:	ja
Bus system KNX radio:	nein
LON bus system:	nein
Powernet bus system:	nein
With bus coupling:	ja
Radio bidirectional:	nein
Rated current:	16 A
With LED display:	ja
Rated operating voltage:	230 V
Max. Switching capacity:	2000 W
Bus module removable:	nein
Suitable for C-load:	nein
Max. Number of switching outputs:	4
Modular expansion option:	nein
Different phases can be connected:	nein
On-site/manual operation:	ja
Shipping weight:	0,16 kg
Item weight:	0,14 kg
Dimensions ( Length × Width × Height ):	4,10 × 10,10 × 6,90 cm
