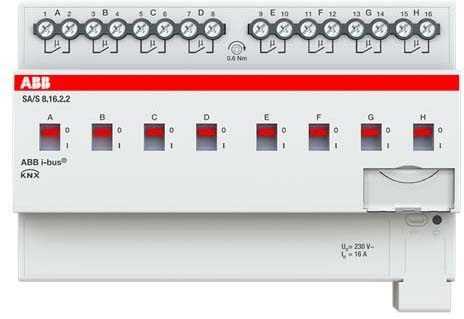

ABB Stotz S&J Switch actuator 8gang, 16A, REG SA/S8.16.2.2 NEW

Item condition: New and in original packaging

Manufacturers: ABB
EAN: 4016779066679
Heiz24 article number: SP6522257
TARIC: 85371091
Country of origin: DE
Category: Installations-Bus-Systeme

€ 312,53

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

9 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 9 Pcs. we can order for you

Pcs.

Switches electrical loads via ABB i-bus® with 2, 4, 8 or 12 independent potential-free contacts. Manual operation of the contact is possible for each output. The switching status of the contact is displayed. The 16A standwheel series is suitable for switching resistive loads (AC1).

Item information	Value
Protection class (IP):	IP20
Mounting type:	REG
Max. Switching current:	16 A
Width in units of division:	8
Output power:	2500 W
Other bus systems:	ohne
Radio bus system:	nein
Bus system KNX:	ja
Bus system KNX radio:	nein
LON bus system:	nein
Powernet bus system:	nein
With bus coupling:	nein ja
Radio bidirectional:	nein
Rated current:	16 A
With LED display:	ja
Rated operating voltage:	230 V 110..230 V
Max. Switching capacity LED:	400 W
Min. depth of the device box:	64,5 mm
Max. Switching capacity:	2500 W
Bus module removable:	ja nein
Suitable for C-load:	nein
Max. Number of switching outputs:	8
Modular expansion option:	nein ja
Different phases can be connected:	ja
On-site/manual operation:	ja
Shipping weight:	0,50 kg
Item weight:	0,41 kg
Dimensions ( Length × Width × Height ):	18,20 × 12,50 × 9,60 cm
