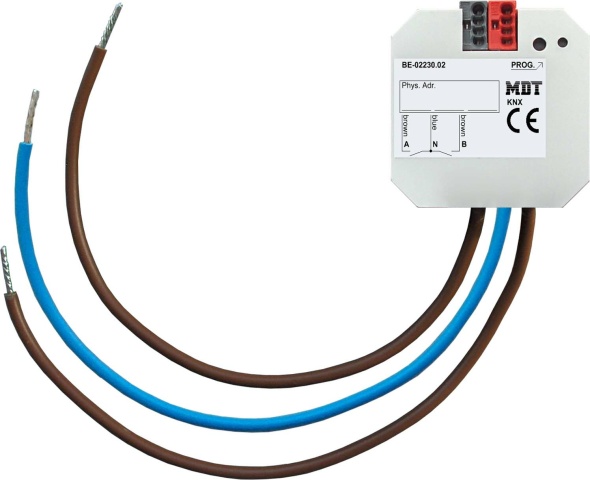

MDT technologies Push-button interface 2-fold flush-mounted, 230VAC BE-02230.02 NEW

Item condition: New and in original packaging

Manufacturers: MDT_technologies#
EAN: 4251916110017
Heiz24 article number: SP6522622
TARIC: 85176200
Country of origin: DE
Category: Installations-Bus-Systeme

€ 76,18

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

11 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 11 Pcs. we can order for you

Pcs.

Push-button interface / push-button interface 2-fold, flush-mounted, 230VAC version. Version for control signals 230VAC. For installation in the switch box, cable length max. 100m. For connection of 230V push-buttons, switches, motion detectors. New multi-tap function, sends up to 4 values/DPTs to the same or different objects. Innovative group control with long/extra long keystroke. 4 integrated logic modules, e.g. for evaluating the inputs (window closed or send second object). Normally open or normally closed operation, length of button press adjustable. Dimmer and shutter function for one-button and two-button operation. Sending of values, priority control and switching commands adjustable. Push-button operation with short/long push-button action and 2 objects. Integrated pulse and switching counters. Cyclic transmission adjustable. For installation in the switch box. Dimensions (W x H x D): 41mm x 41mm x 22mm. Integrated bus coupling unit.

Item information	Value
Protection class (IP):	IP20
Mounting type:	Unterputz
Number of inputs:	2
Other bus systems:	ohne
Radio bus system:	nein
Bus system KNX:	ja
Bus system KNX radio:	nein
LON bus system:	nein
Powernet bus system:	nein
With bus coupling:	ja
Radio bidirectional:	nein
Input voltage:	230 V
With LED display:	nein
Input voltage type:	AC
Min. depth of the device box:	35 mm
Bus module removable:	nein
Control LED:	nein
External interrogation voltage necessary:	ja
Shipping weight:	0,05 kg
Item weight:	0,05 kg
Dimensions ( Length × Width × Height ):	4,10 × 10,10 × 6,90 cm
