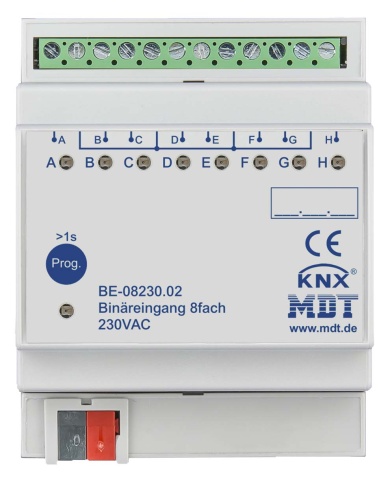

MDT technologies Binary input 8-fold 4TE REG, 230VAC BE-08230.02 NEW

Item condition: New and in original packaging

Manufacturers: MDT_technologies#
EAN: 4251916110093
Heiz24 article number: SP6522630
TARIC: 85176200
Country of origin: DE
Category: Installations-Bus-Systeme

€ 192,88

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

6 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 6 Pcs. we can order for you

Pcs.

Binary input 8-fold, 4TE, REG, version 230VAC. Version for control signals 230VAC. LED display for each channel, cable length max. 100m. For connection of push-buttons, switches, window contacts. New multi-tap function, sends up to 4 values/DPTs to the same or different objects. Innovative group control with long/extra long keystroke. 4 integrated logic modules, e.g. for evaluating the inputs (e.g. window closed or send second object). Normally open or normally closed operation, send contact status. Dimmer and shutter function for one-button and two-button operation. Send values, priority control. Scenes, disable objects for each channel. Push-button operation with short/long push-button action and 2 objects. Cyclical transmission, transmission after reset.

Item information	Value
Protection class (IP):	IP20
Mounting type:	REG
Width in units of division:	4
Number of inputs:	8
Other bus systems:	ohne
Radio bus system:	nein
Bus system KNX:	ja
Bus system KNX radio:	nein
LON bus system:	nein
Powernet bus system:	nein
With bus coupling:	ja
Radio bidirectional:	nein
Input voltage:	230 V
With LED display:	ja
Input voltage type:	AC
Bus module removable:	nein
Control LED:	nein
External interrogation voltage necessary:	ja
Shipping weight:	0,17 kg
Item weight:	0,14 kg
Dimensions ( Length × Width × Height ):	8,40 × 9,50 × 7,00 cm
