"Fig. similar. , errors in texts and images excepted."

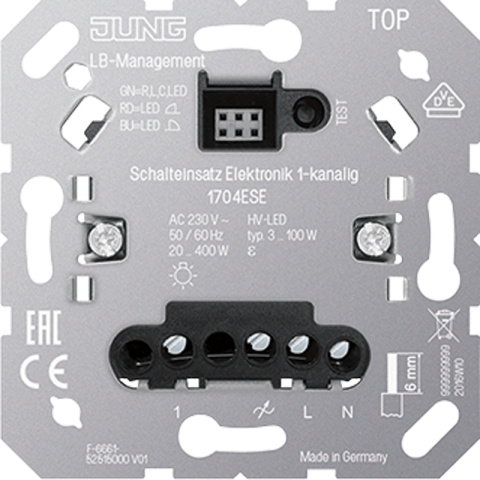

Jung switch insert electronics 1-channel 1704 ES E NEW

Item condition: New and in original packaging

Manufacturers: Jung#
EAN: 4011377166899
Heiz24 article number: SP6408156
TARIC: 85365080
Country of origin: DE
Category: NEW

€ 80,57

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

16 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 16 Pcs. we can order for you

Pcs.

with extension input for attachments art. no.: ... 1700 .., .. 1701 .., .. 1750 D .., .. 1751 BT ..., ... 17180 .., .. 17280 .., .. 17181 .., .. 17281 .., DWPM 17360 ... for displays Art. no.: ... 1790 D .. Intended use Operation with suitable attachment from LB-Management Mounting in device box according to EN 60670-1 Operation with neutral conductor: Switching of incandescent lamps, HV halogen lamps, electronic or inductive transformers with halogen or LED lamps, switchable or dimmable HV LED or compact fluorescent lamps Operation without neutral conductor: Switching of incandescent lamps, HV halogen lamps, electronic or inductive transformers with halogen or LED lamps, dimmable HV LED or compact fluorescent lamps Product features Switching on by lamp-protecting soft start Connection of extension units possible Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest Electronic overtemperature protection Test mode for function testing Unit is supplied via phase conductor and neutral conductor, therefore there is no phase angle or phase cut-off Unit is supplied via the phase conductor and the connected load and therefore operates according to the phase angle or phase cut-off principle Automatic or manual setting of the operating mode suitable for the load Display of the set operating mode by means of LED

PDF

Montageanleitung

Montageanleitung

Item information	Value
Version:	Tronic
Material grade:	sonstige
Mounting type:	Unterputz
Material:	sonstige
Mounting type:	Krallen-/Schraubbefestigung
Rated voltage:	230 V
Compilation:	Basiselement
Frequency:	50..60 Hz
Extension input:	ja
Rated current:	16 A
Load type:	sonstige
Can be used with motion detector:	ja
Can be used with radio button:	ja
Can be used with IR button:	nein
Can be used with presence detector:	ja
Usable with button:	ja
Can be used with timer/timer:	ja
Switching capacity:	3..400 W
Shipping weight:	0,10 kg
Item weight:	0,08 kg
Dimensions ( Length × Width × Height ):	8,20 × 8,20 × 4,50 cm
