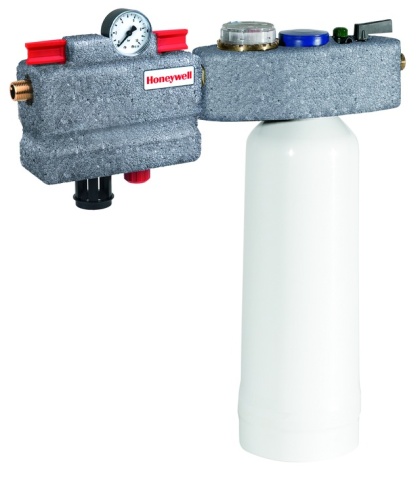

Honeywell NK300S-VE-1/2A NEW

Item condition: New, in original packaging

Manufacturers: Honeywell#
EAN: 4019837149819
Heiz24 article number: Y3185
TARIC: 85371091
Country of origin: DE
Category: H

€ 711,10

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Item sold out and no longer available for order

Type: Refill combination with full demineralisation cartridge for heating systems, R 1/2, sieve 200 µm
The Honeywell NK300S-VE full demineralisation unit enables the full demineralisation of heating water according to VDI guideline 2035, sheets 1 and 2. Limescale deposits and associated damage and malfunctions in hot water heating systems (DIN EN 12828) are effectively prevented.
The upstream refill combination based on a system separator type BA protects the drinking water from backflowing heating water as required by DIN EN 1717.
- Integrated water meter makes it easy to determine when the cartridge has been changed
- Cartridges can be changed easily without tools
- Permanent connection to the drinking water pipe is possible in accordance with EN1717 by means of a hose or pipe.
- Optimum protection for the drinking water supply network
- System separator tested for sound insulation, class 2
- Pressure reducer tested for sound insulation, class 1
- Pressure reducer with upstream pressure compensation - fluctuating upstream pressures have no
- outlet pressure adjustable and readable on pressure gauge
Approvals (for refill unit NK300S)
Material Housing made of brass resistant to dezincification, outlet connectiondrain connection, cartridge insert, valve insert, mechanical components of the cutting unit and spring cap made of high-quality plastic, diaphragm made of EPDM, fabric-reinforced, sealing elements made of NBR and EPDM, setpoint spring made of spring steel, fine sieve made of stainless steel, cartridge made of polypropylene
Medium water
Max. medium temp. 30 °C Medium temp. 30 °C
Stat. pressure PN10
Pressure range 1.5 ... 4 bar
EAN number 4019837149819
Pipe connection external thread
Kvs-value 0,45
Housing (HxWxD) 524 mm | 483 mm | - mm
Filter fineness 200 µm
Additional description Suitable for heating systems with the following materials: Aluminium, aluminium alloys, steel, copper, copper alloys and plastics.
- Conditioned water has altered corrosion chemical parameters. Conditioning by means of inhibitors must be provided separately.
