"Fig. similar. , errors in texts and images excepted."

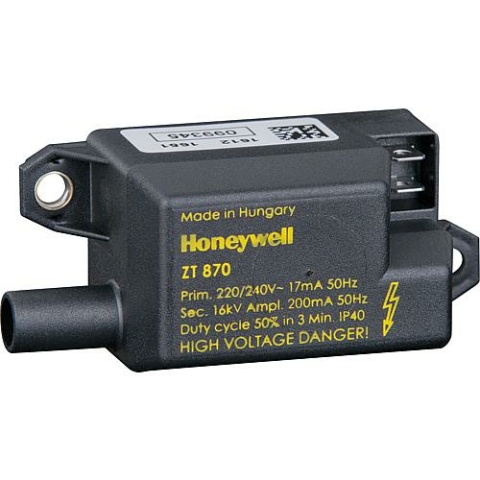

Resideo Satronic high-frequency device ignition transformer ZT870 13000U NEW

Item condition: New and in original packaging

Manufacturers: Resideo Pittway Sarl
EAN: 4046911022478
Heiz24 article number: WS2803612
TARIC: 85043200
Country of origin: DE
Category: Furnace spare parts

€ 125,00

incl. 19% VAT , plus

Choose tax zone / country of delivery

174 Pcs. In stock
Estimated delivery time (may vary): 1 - 3 Workdays (DE - foreign countries differ)

Pcs.

for atmospheric gas heaters. Mains and high-voltage cable pluggable.

Attention! Discontinued item! while stocks last

Functional description:
An electronic circuit generates approx. 50 pulses per second. These are increased to a voltage of
approx. 16 kV using a transformer. Both the secondary voltage and the spark energy are independent of the mains frequency and voltage.
Only the pulse sequence increases when the mains voltage is too high. The very short pulse times of the ignition spark and
its stability prevent it from influencing the ionisation monitoring.
Installation instructions:
The relevant installation instructions must be observed during installation and wiring. To avoid radio interference and
line losses, the ignition cable should be as short as possible. The small dimensions and
simple installation of the ZT 870 ignition device allow it to be positioned close to the ignition electrode.
- Primary voltage: 230 Volt - 50/60 Hz
- Secondary power: 16 kV - 40 mA
- Duty cycle 50% in 3 min.
- Connection: plug pin ø 4 mm Connection: plug-in pin ø 4 mm
- Ignition device without mains cable and without ignition cable, please order separately if these are required
