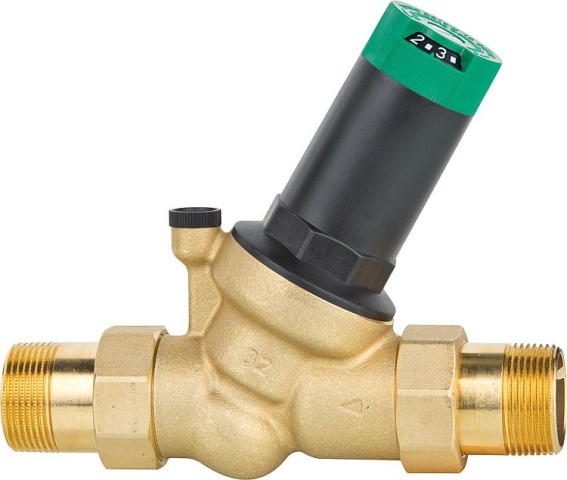

Resideo Brauckmann pressure reducer D05FS 1/2" A threaded nozzle with adjustment scale D05FS-1/2A NEW

Item condition: New and in original packaging

Manufacturers: Resideo Pittway Sarl
EAN: 4019837113087
Heiz24 article number: WS9302334
TARIC: 84818090
Country of origin: DE
Category: Pressure reducer

€ 66,10

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

33 in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 33 we can order for you

• For use with water, oil-free compressed air and nitrogen within the scope of the system approval according to PED
• Output pressure: 1.5 - 6 bar
• Installation position: horizontal
• Pressure gauge connection DN 8 (1/4") on both sides
• Seals and diaphragm: NBR
• Supplied without pressure gauge
• DIN/DVGW –
• Housing made of dezincification-resistant brass
• Brass screw connection
• Max. inlet pressure: 25 bar
• Max. operating temperature: + 70 °C
• Suitable pressure gauge (order no.: 70 100 65)

PDF

93_023_34--DBL-01-de.pdf

Datenblatt

93_023_34--DBL-01-de.pdf

93_001_01--ZFT-01-de.pdf

Zertifikat

93_001_01--ZFT-01-de.pdf

Item information	Value
Brand:	Resideo
EAN:	4019837113087
Ref. no.:	D05FS 1/2" A
Size:	DN 15 (1/2")
kvs value [m³/h]:	3,0
Overall length with screw connection [mm]:	155
Overall length without screw connection [mm]:	95
:	D05FS-1/2A
Shipping weight:	0,80 kg
Item weight:	0,80 kg
Dimensions ( Length × Width × Height ):	14,80 × 11,80 × 7,20 cm
