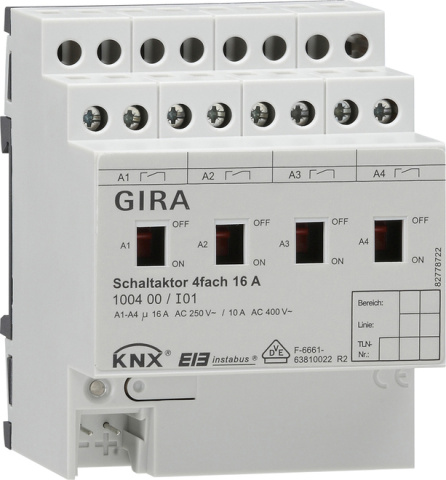

Gira switching actuator 4-gang 16A REG 100400 NEW

Item condition: New and in original packaging

Manufacturers: Gira#
EAN: 4010337042174
Heiz24 article number: SP0828867
TARIC: 85364900
Country of origin: DE
Category: Installations-Bus-Systeme

€ 210,02

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

6 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 6 Pcs. we can order for you

Pcs.

KNX switching actuator 4gang 16 A with manual operation REG plus REG switching actuators with integrated bus coupling. For switching independently controllable load groups. With manual switch for switching the relay (On/Off) in parallel or without KNX operation. Multiphase connection. No additional power supply required. Features: Manual operation of relays independent of bus or switch position indication. Normally open or normally closed operation. Central switching function. Collective feedback to reduce bus load. Active or passive (object readable) cyclical feedback function. Feedback can be delayed after bus voltage recovery. Logical linking function for each output. Locking function can be parameterised for each channel. Alternatively, forced position function for each output. Time functions (switch-on or switch-off delay, staircase lighting function - also with pre-warning function). Inclusion in light scenes possible, max. eight internal scenes per channel can be parameterised. Memory function for light scenes. Operating hours counter as up/down counter with limit value function (limit value can be changed via bus) can be activated for each output. Input monitoring for cyclical updating with safety position. Reactions on bus voltage failure and recovery and after an ETS programming operation can be set for each channel. Independent switching of the four outputs. Remarks : Mounting on DIN top-hat rail. VDE approval according to EN 60669-1, EN 60669-2-1.

PDF

Produktdatenblatt

Produktdatenblatt

Item information	Value
Protection class (IP):	IP20
Mounting type:	REG
Max. Switching current:	16 A
Width in units of division:	4
Other bus systems:	ohne
Radio bus system:	nein
Bus system KNX:	ja
Bus system KNX radio:	nein
LON bus system:	nein
Powernet bus system:	nein
With bus coupling:	nein
Number of digital inputs:	4
Max. Switching capacity:	3600 W
Suitable for C-load:	nein
Max. Number of switching outputs:	4
Modular expansion option:	nein
On-site/manual operation:	ja
Shipping weight:	0,29 kg
Item weight:	0,29 kg
Dimensions ( Length × Width × Height ):	12,00 × 11,60 × 7,90 cm
