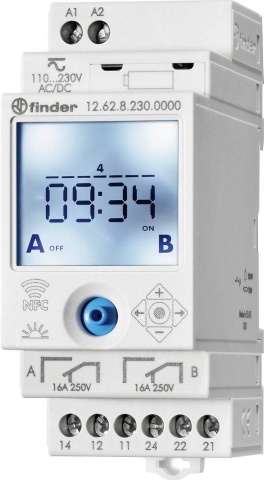

Finder timer 2 changeover contacts, 16A 12.62.8.230.0000 NEW

Item condition: New and in original packaging

Manufacturers: Finder#
EAN: 8012823402246
Heiz24 article number: SP5710726
TARIC: 91070000
Country of origin: IT
Category: Sicherungsautomaten, SHL,FI und sonst. Einbaugeräte

€ 96,72

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

11 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 11 Pcs. we can order for you

Pcs.

Electronic time switch with LCD display for in-line installation, 2 changeover contacts for 16 A / 250 V AC (AC1), joystick programming or programming via an NFC-enabled smartphone with the Finder Toolbox app (Android and iOS). After installing the Finder app, an existing programme can be read out or new programming can be carried out with max. flexibility. To transfer the data, the timer is touched with the smartphone. Contact material AgSnO², max. inrush current 120 A for 5 ms, pulse function 1 second to 59 minutes, shortest switching time 1 minute, max. switching capacity at 230 V AC1: 4000 VA. Lamp loads: incandescent and halogen lamps 2000 W, energy-saving lamps 400 W, LED (230 V AC) 400 W, LV halogen lamps or LED with ECG 400 W, LV halogen lamps or LED with CCG 800 W, fluorescent lamps with ECG 1000 W, fluorescent lamps with CCG 750 W, safe separation between power supply and contacts

Item information	Value
Protection class (IP):	IP20
Height:	88,8 mm
Mounting type:	DIN-Schiene
Width in units of division:	2
Supply voltage type:	AC
Wide:	35 mm
Depth:	60,8 mm
Supply voltage:	230 V
Number of channels:	2
Contact design:	Wechsler (NO/NC)
Suitable for manual operation:	nein
24 h programme:	ja
60 min programme:	nein
Number of memory locations:	50
Astro programme:	nein
Automatic summer/winter time changeover:	ja
Operating hours counter:	nein
External programming:	ja
External push button input:	nein
Holiday programme:	nein
Frequency of the supply voltage:	50..60 Hz
Radio-controlled:	nein
Radio controlled (DCF77):	nein
Accuracy per day:	1,5 s
Power reserve in years:	6
Power reserve in hours:	52596
GPS:	nein
Impulse programme:	ja
Annual programme:	nein
Shortest switching time channel 1:	1 min
With memory card:	nein
Rated switching current at 250 V AC:	16 A
Mains synchronous:	nein
Potential-free switching contact:	ja
Crystal-controlled:	ja
Circuit preselection:	nein
Text guidance in the display:	ja
Weekly programme:	ja
Random programme:	nein
Cycle programme:	nein
Shortest switching time channel 2:	1 min
Shipping weight:	0,16 kg
Item weight:	0,14 kg
Dimensions ( Length × Width × Height ):	24,50 × 10,00 × 10,00 cm
