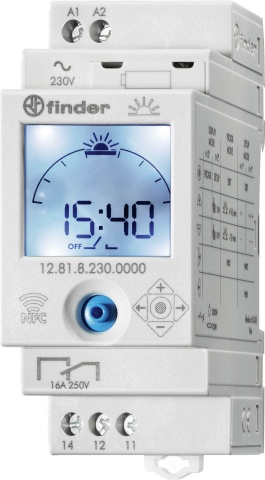

Finder Astro time switch 12.81.8.230.0000 NEW

Item condition: New and in original packaging

Manufacturers: Finder#
EAN: 8012823371450
Heiz24 article number: SP5708563
TARIC: 91070000
Country of origin: IT
Category: Distribution and securing material

€ 78,70

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

106 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 106 Pcs. we can order for you

Pcs.

Electronic astronomical timer for DIN rail, backlit display, joystick programming or programming via an NFC-enabled smartphone with the Finder Toolbox app (Android and iOS). After installing the Finder app, an existing programme can be read out or new programming can be carried out with maximum flexibility. To transfer the data, the timer is touched with the smartphone. In addition, time-controlled switching off or on and off within the Astro time is possible. 1 changeover contact for 16 A, contact material AgSnO², max. switching capacity at 230 V AC: AC Switching capacity at 230 V AC: AC1 4000 VA, AC 15 (230 V AC) 750 VA, lamp loads: incandescent and halogen lamps 2000 W, energy-saving lamps 400 W, LED (230 V AC) 400 W, LV halogen lamps or LED with ECG 400 W, LV halogen lamps or LED with CCG 800 W, fluorescent lamps with ECG 1000 W, fluorescent lamps with CCG 750 W, 6-year power reserve, automatic summer/winter time changeover, with astronomical data for sunrise and sunset. In addition, time-controlled switching off or off and on within the astronomical time is possible. Supply voltage: 230 V AC, 35 mm wide

Item information	Value
Protection class (IP):	IP20
Height:	88,8 mm
Mounting type:	DIN-Schiene
Width in units of division:	2
Supply voltage type:	AC
Wide:	35 mm
Depth:	60,8 mm
Supply voltage:	230 V
Number of channels:	1
Contact design:	Wechsler (NO/NC)
Suitable for manual operation:	ja
24 h programme:	nein
60 min programme:	nein
Astro programme:	ja
Automatic summer/winter time changeover:	ja
Operating hours counter:	nein
External programming:	ja
External push button input:	nein
Holiday programme:	nein
Frequency of the supply voltage:	50..60 Hz
Radio-controlled:	nein
Radio controlled (DCF77):	nein
Accuracy per day:	1 s
Power reserve in years:	6
Power reserve in hours:	52596
GPS:	nein
Impulse programme:	nein
Annual programme:	nein
With memory card:	nein
Rated switching current at 250 V AC:	16 A
Mains synchronous:	nein
Potential-free switching contact:	ja
Crystal-controlled:	ja
Circuit preselection:	nein
Text guidance in the display:	ja
Weekly programme:	nein
Random programme:	nein
Cycle programme:	nein
Shipping weight:	0,13 kg
Item weight:	0,12 kg
Dimensions ( Length × Width × Height ):	24,50 × 10,00 × 10,00 cm
