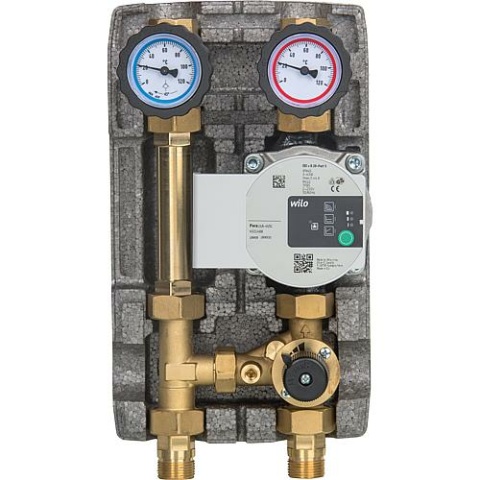

Evenes heating circuit set Easyflow DN20(3/4""), 3-way mixer, Wilo Para 15/6 SC NEW

"Fig. similar. , errors in texts and images excepted."

Evenes heating circuit set Easyflow DN20(3/4""), 3-way mixer, Wilo Para 15/6 SC NEW

Item condition: New and in original packaging

Manufacturers: Evenes
Heiz24 article number: WS9003550
TARIC: 84137030
Country of origin: IT
Category: Mixers and actuators

€ 340,50

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

8 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 8 Pcs. we can order for you

Pcs.

Flow:
- 1 x flow pump flange ball valve with thermometer handwheel (thermometer ring red, 0-120°C)
- 2 x union nut and seal
- 1 x screw connection DN 20 (3/4")
- Incl. Wilo Para 15/6 SC U-pump, overall length 130 mm

Return:
- 1 x return flow pump flange ball valve with thermometer handwheel (thermometer ring blue, 0-120°C) and adjustable gravity brake by turning the handwheel 45°
- 1 x brass pipe
- 1 x screw connection DN 20 (3/4")
- Flow and return flow interchangeable

Technical data heating circuit set:
- Operating temperature max.110 °C
- Operating pressure max.10 bar
- Connections boiler side: DN 20 (3/4")AG
- Connections consumer side: DN 20 (3/4") IG
- Gravity brake: 20 mbar
- Centre distance: 90 mm
- Material: brass
- Insulation: EPP
- Dimensions (with insulation) HxWxD: 302 x 180 x 142 mm

Technical data pump:
- Nominal size: DN 15 (1/2") x DN 25 (1")
- Installation length: 130 mm
- Delivery head: 6.0 m
- Operating voltage: 230 V/AC
- EEI: =0.20
- Proportional pressure characteristic: 3
- Constant pressure characteristic: 3
- Constant speed: 3
- Material: grey cast iron, KTL-coated
- Kvs value: 4.0
- Max. output: 28 kW - Flow rate: 28 kW28 kW
- Flow rate: max. 1200 l/h
- Flow: 1 x 3-way mixer
- Return: T-piece for 3-way mixer

PDF

90_035_50--DBL-01-de.pdf

Datenblatt

90_035_50--DBL-01-de.pdf

90_035_50--DBL-02-de.pdf

Datenblatt

90_035_50--DBL-02-de.pdf

90_035_50--DBL-03-de.pdf

Datenblatt

90_035_50--DBL-03-de.pdf

90_035_50--DBL-05-de.pdf

Datenblatt

90_035_50--DBL-05-de.pdf

90_035_50--DBL-02-fr.pdf

Datenblatt

90_035_50--DBL-02-fr.pdf

90_035_50--DBL-03-fr.pdf

Datenblatt

90_035_50--DBL-03-fr.pdf

Item information	Value
Version:	Pumpe Wilo Para 15/6 SC, ohne Mischermotor
Manufacturer no.:	20255R-M3-P6
Shipping weight:	4,96 kg
Item weight:	4,96 kg
Dimensions ( Length × Width × Height ):	37,80 × 23,40 × 20,80 cm
LaNr.:	90 035 50
