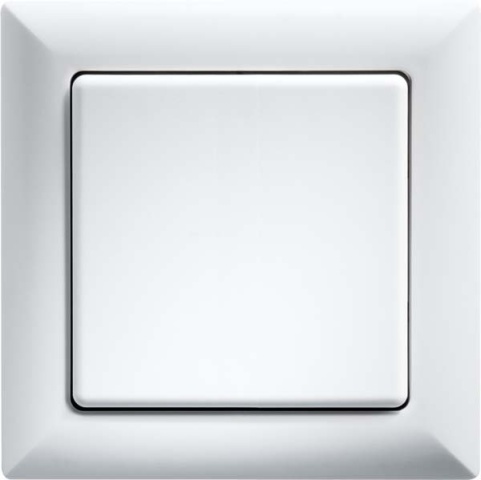

Eltako wireless pushbutton white FT55-ws NEW

Item condition: New and in original packaging

Manufacturers: Eltako#
EAN: 4010312308936
Heiz24 article number: SP6509877
TARIC: 85269200
Country of origin: DE
Category: Funk-Bus-Systeme

€ 47,72

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

1 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 1 Pcs. we can order for you

Pcs.

Wireless pushbutton, 80x80mm external, internal frame dimension 55x55mm, 15mm high. Generates the energy for radio telegrams even when the button is pressed, therefore no connection cable and no stand-by loss. With rocker and double rocker. Smart Home Sensor. The scope of delivery includes the frame R, a rocker W55, a double rocker DW55 (all the same colour), a mounting frame BRF, the mounting plate HP, the radio module and an adhesive foil. Wireless pushbuttons with one rocker can transmit two, wireless pushbuttons with double rocker can transmit four evaluable signals. The mounting plate can be screwed onto a flat surface or glued to the wall, glass or furniture with the enclosed adhesive foil. Above a 55mm switch box, the sleeves provided in the box are used for screw fastening. The double rocker is snapped onto the radio module ex works. If this is to be replaced with the large rocker, pull the rocker halves off towards the front and do not bend them towards the middle. Then snap the large rocker onto the radio module so that its 0 and I markings on the back match. When gluing on, first glue on the set of holding plate with frame and fastening frame - with the catches at the top and bottom. Then snap on the set of radio module with rocker - marking 0 on the back always on top.

Item information	Value
Surface protection:	unbehandelt
Colour:	weiß
Material grade:	Thermoplast
Transparent:	nein
Mounting type:	Aufputz
Halogen-free:	Ja
Material:	Kunststoff
Surface finish:	matt
With handheld transmitter:	nein
Signal transmission:	Funk
Number of channels:	4
IFTTT support available:	nein
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Reach:	30 m
Suitable for blind switches:	ja
Suitable for switches:	ja
With remote control:	nein
Suitable for dimmers:	ja
Suitable for display element:	ja
Wall transmitter:	ja
Window transmitter:	nein
Suitable for motion detectors:	nein
Shipping weight:	0,09 kg
Item weight:	0,09 kg
Dimensions ( Length × Width × Height ):	4,40 × 8,90 × 8,60 cm
