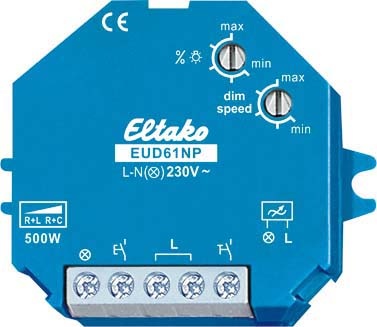

Eltako universal dimmer switch without N f.R+L+C-load. EUD61NP-230V NEW

Item condition: New and in original packaging

Manufacturers: Eltako#
EAN: 4010312108062
Heiz24 article number: SP6400168
TARIC: 85365080
Country of origin: CN
Category: Systemgebundene Elektronik (Wächter, Dimmer)

€ 46,81

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

Without N-connection, power MOSFET up to 400W. Stand-by loss only 0.5 Watt. With control inputs for light switches and light switches. Minimum brightness and dimming speed adjustable. For recessed mounting. 45mm long, 45mm wide, 18mm deep. Universal dimmer switch for R, L and C loads up to 400W depending on ventilation conditions. Automatic recognition of the load type R+L or R+C. Not suitable for 230V LED lamps and energy-saving lamps ESL, please use EUD61NPL or the dimmer EUD61NPN with N-connection. Switching in zero crossing with soft on and soft off to protect the lamp. Control voltage 230V. Minimum load 20W. Short control commands switch on/off, permanent control changes the brightness up to the maximum value. Interrupting the control changes the dimming direction. The set brightness level remains stored when the unit is switched off. In the event of a power failure, the switching position and brightness level are saved and, if necessary, switched on when the supply voltage returns. Automatic electronic overload protection and overtemperature cut-off. With the upper %lamp rotary switch, the minimum brightness (fully dimmed) can be set. The lower dim speed rotary switch can be used to set the dimming speed. At the same time, the duration of soft on and soft off is changed. In the event that light switches cannot be replaced by light push-buttons, a separate control input for light switches is provided: If the closed switch is briefly opened again, then dimming takes place until it is briefly opened again. A change of dimming direction takes place automatically at the two vertices. In addition, the direction can be changed by briefly opening the switch twice. With child's room switch (only when controlled with push-button): When switching on with a longer push-button action, the luminaire is switched on after approx. 1 second with the lowest brightness level and, as long as the push-button is still pressed, is slowly dimmed up without changing the last stored brightness level. With snooze circuit (only when controlled by push-button): A double pulse dims the lighting from the current dimmer setting to the minimum brightness and switches it off. The max. dimming time of 60 minutes depends on the current dimming position and the set minimum brightness and can thus be shortened accordingly. You can switch off at any time during the dimming process by briefly pressing the button. A long push during the dimming down process dims up and terminates the snooze circuit. Without N-connection, therefore suitable for mounting directly behind the light switch or light switch, even if no N-line is available. L loads (inductive loads, e.g. wound transformers) and C loads (capacitive loads, e.g. electronic transformers) must not be mixed. R loads (resistive loads, e.g. 230V incandescent and halogen lamps) may be mixed in as desired.

Item information	Value
Surface protection:	unbehandelt
Colour:	blau
Material grade:	Thermoplast
Transparent:	nein
Mounting type:	Unterputz
Halogen-free:	Ja
Connection type:	Schraubklemme
Material:	Kunststoff
Surface finish:	matt
Mounting type:	Befestigung mit Schraube
Rated voltage:	230 V
Dimming phase section:	nein
Dimming phase angle control:	nein
Compilation:	sonstige
Control voltage:	230 V
Extension input:	nein
Core cross-section:	4 mm²
App control via Bluetooth:	nein
Operating mode:	Tipptaster
Unit width:	45 mm
Unit height:	45 mm
Unit depth:	18 mm
IFTTT support available:	nein
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Load type:	universal
Light value memory:	ja
Min. depth of the device box:	18 mm
Rated power inductive load:	400 VA
Rated power capacitive load:	400 VA
Rated power resistive load:	400 W
Series dimmer:	nein
Can be used with motion detector:	nein
Can be used with radio button:	nein
Can be used with IR button:	nein
Can be used with presence detector:	nein
Usable with button:	ja
Can be used with timer/timer:	nein
Shipping weight:	0,05 kg
Item weight:	0,05 kg
Dimensions ( Length × Width × Height ):	2,00 × 9,00 × 7,00 cm
