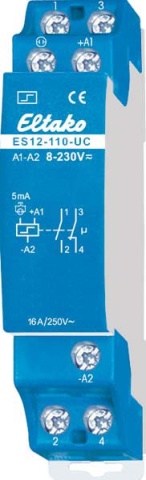

Eltako impulse switch 16A,1S+1Ö ES12-110-UC NEW

Item condition: New and in original packaging

Manufacturers: Eltako#
EAN: 4010312108055
Heiz24 article number: SP5700024
TARIC: 85365080
Country of origin: CN
Category: Sicherungsautomaten, SHL,FI und sonst. Einbaugeräte

€ 38,27

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

25 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 25 Pcs. we can order for you

Pcs.

1 NO contact + 1 NC contact potential-free 16A/250V AC, 230V LED lamps up to 200W, incandescent lamps 2000W. No stand-by loss. Modular device for mounting on DIN-EN 60715 TH35 rail. 1 division unit = 18mm wide, 58mm deep. Either universal control voltage 8..230V UC at control input +A1/-A2 or 230V with up to 5mA glow lamp current at control input (L)/-A2 (N). Simultaneous use of two potentials at the control inputs is not permitted. Very low switching noise. No permanent power supply required, therefore no stand-by loss. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. By using a bistable relay, there is no coil power loss and no heating even when the unit is switched on. The relay contact can be open or closed at start-up and synchronises at the first actuation. The terminal assignment is identical to the electromechanical impulse switch S12-110-. If this impulse switch is in a circuit that is monitored with a FR12-230V field disconnector, no additional basic load is required, but the monitoring voltage of the FR12-230V must be set to max. The electronics have no power supply of their own and therefore no power consumption in either contact position. Only during the short control pulse of only 0.2 seconds does the control current flow, which activates the microcontroller. It reads the last switching state from its non-volatile memory, switches the bistable relay accordingly in the opposite direction and writes the new switching state back into the memory. combines the advantages of wear-free electronic control with the high performance of special relays. Due to the use of a bistable relay, there is no coil power loss and no heating even when switched on. The relay contact can be open or closed at start-up and synchronises at the first actuation. The terminal assignment is identical to the electromechanical impulse switch S12-110-.

Item information	Value
Mounting type:	DIN-Schiene
Width in units of division:	1
Number of contacts as normally open:	1
Supply voltage type:	AC
Control voltage type 1:	AC/DC
Function:	elektronisch Schalter
Supply voltage:	250 V
Installation depth:	58 mm
Rated switching current:	16 A
Max. Incandescent lamp load:	2000 W
Max. Fluorescent lamp load:	1000 VA
Max. Fluorescent lamp load (duo circuit):	1000 VA
Max. Fluorescent lamp load (parallel compensated):	500 VA
Control voltage frequency 1:	50 Hz
Suitable for manual operation:	nein
Max. Switching current (cos phi:	0,6)=4 A
Control voltage 1:	8..230 V
Number of contacts as break contacts:	1
Control voltage 2:	230 V
Control voltage type 2:	AC
Control voltage frequency 2:	50 Hz
Shipping weight:	0,07 kg
Item weight:	0,07 kg
Dimensions ( Length × Width × Height ):	2,00 × 9,00 × 7,00 cm
