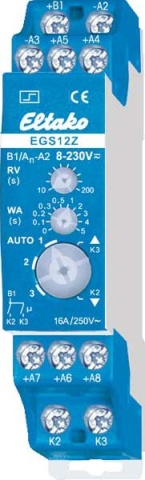

Eltako impulse group switch 1+1S 16A EGS12Z-UC NEW

Item condition: New and in original packaging

Manufacturers: Eltako#
EAN: 4010312107737
Heiz24 article number: SP0663318
TARIC: 85365080
Country of origin: CN
Category: Sicherungsautomaten, SHL,FI und sonst. Einbaugeräte

€ 51,55

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

36 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 36 Pcs. we can order for you

Pcs.

Actuator UC. Impulse group switch for central control for 1 motor or for motor relay. Stand-by loss only 0.05 to 0.4 Watt. This impulse group switch converts the commands of the sensor relays or of switches and push-buttons and switches a motor, motor isolating relay MTR12-UC or DC motor relay depending on the setting of the rotary switches on the front. The control voltage at terminals A3 to A8 must have the same potential as the supply voltage. The functional principle of this impulse group switch is that on the one hand it can be controlled pulse-wise up, stop, down, stop (contact 1 closed - both contacts open - contact 2 closed - both contacts open), on the other hand it can be selected specifically up or down via additional control inputs. Dynamic refers to control inputs where a pulse of at least 20ms is sufficient to close a contact. Static is a control input where the contact is only closed as long as the control command is present. The designations up and down apply to roller shutters, venetian blinds and roller blinds.

Item information	Value
Mounting type:	DIN-Schiene
Width in units of division:	1
Number of contacts as normally open:	2
Supply voltage type:	AC/DC
Control voltage type 1:	AC/DC
Function:	elektronisch Gruppenschalter
Supply voltage:	8..230 V
Installation depth:	58 mm
Rated switching current:	16 A
Control voltage frequency 1:	50 Hz
Suitable for manual operation:	nein
Max. Switching current (cos phi:	0,6)=2 A
Control voltage 1:	8..230 V
Shipping weight:	0,11 kg
Item weight:	0,11 kg
Dimensions ( Length × Width × Height ):	2,00 × 9,00 × 7,00 cm
