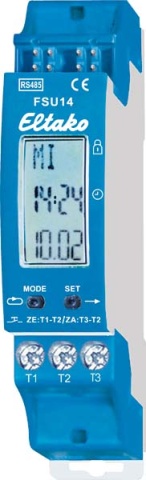

Eltako bus display time switch RS485 FSU14 NEW

Item condition: New and in original packaging

Manufacturers: Eltako#
EAN: 4010312313831
Heiz24 article number: SP6514135
TARIC: 85269200
Country of origin: CN
Category: Funk-Bus-Systeme

€ 57,42

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

2 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 2 Pcs. we can order for you

Pcs.

Display time switch with 8 channels for the Eltako RS485 bus. With astro function. Stand-by loss only 0.1 Watt. Connection to the Eltako RS485 bus, cross wiring bus and power supply with jumper. For the function of this time switch it is necessary that a device address is assigned by the radio antenna module as described in the operating instructions. The switching commands of the channels can be taught-in in bus actuators and in radio actuators. Up to 60 time switch memory locations are freely distributed among the channels. With date and automatic summertime/wintertime changeover. Power reserve without battery approx. 20 days. Each memory location can be assigned either the astro function (automatic switching after sunrise or sunset) or the time function. The switch-on or switch-off time Astro can be shifted plusminus 2 hours. In addition, a time shift of up to plusminus 2 hours influenced by the solstices can be entered. The timer is set with the MODE and SET buttons and the settings can be locked. For more information, see the operating instructions.

Item information	Value
Protection class (IP):	IP20
Mounting type:	REG
Power reserve:	480 h
Width in units of division:	1
Other bus systems:	ohne
Radio bus system:	ja
Bus system KNX:	nein
Bus system KNX radio:	nein
LON bus system:	nein
Powernet bus system:	nein
With bus coupling:	ja
Radio bidirectional:	ja
Number of channels:	8
Astro programme:	ja
External programming:	ja
Radio controlled (DCF77):	nein
GPS:	nein
Annual programme:	ja
With memory card:	nein
Weekly programme:	ja
Presence simulation:	ja
Holiday update:	nein
Summer/winter time:	ja
Daily programme:	ja
Slave clocks controllable via bus:	nein
Shipping weight:	0,13 kg
Item weight:	0,13 kg
Dimensions ( Length × Width × Height ):	2,00 × 9,00 × 7,00 cm
