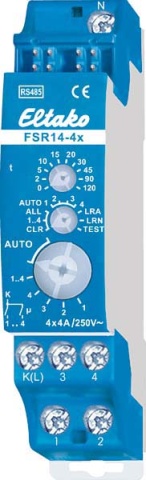

Eltako impulse switching relay 4-channel FSR14-4x NEW

Item condition: New and in original packaging

Manufacturers: Eltako#
EAN: 4010312313701
Heiz24 article number: SP6514132
TARIC: 85269200
Country of origin: CN
Category: Funk-Bus-Systeme

€ 56,08

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

Impulse switching relay with 4 channels, 1 NO contact each 4A/250V AC, 230V LED lamps up to 200W, incandescent lamps 1000W, electrically isolated from the supply voltage, with DX technology. Bidirectional. Stand-by loss only 0.1 Watt. Connection to Eltako RS485 bus. Cross-wiring bus and power supply with jumper. To do this, simply connect the N conductor to terminal (N) and L to K(L). This results in an additional stand-by loss of only 0.1 Watt. If all 4 relays of the FSR14-4x are switched on, 0.7 watts are required. If the supply voltage fails, the unit is switched off in a defined manner. The channels can be taught-in independently as ES and/or ER channels. Scene control: With one of the four control signals of a push-button with double rocker taught-in as a scene push-button, several channels of one or more FSR14-4x can be switched on or off to form one scene each. Central commands on the PC are sent with the GFVS building radio visualisation and control software. To do this, teach in one or more FSR14-4x on the PC. The rotary switches are used to teach-in the push-buttons and, if necessary, to test the 4 channels. The LED under the upper rotary switch accompanies the teach-in process according to the operating instructions and indicates control commands by flashing briefly during operation.

Item information	Value
Protection class (IP):	IP20
Mounting type:	REG
Max. Switching current:	4 A
Width in units of division:	1
Output power:	1000 W
Other bus systems:	ohne
Radio bus system:	ja
Bus system KNX:	nein
Bus system KNX radio:	nein
LON bus system:	nein
Powernet bus system:	nein
With bus coupling:	ja
Radio bidirectional:	ja
Rated current:	16 A
With LED display:	nein
Rated operating voltage:	12 V
Max. Switching capacity LED:	200 W
Max. Switching capacity:	1000 W
Bus module removable:	ja
Suitable for C-load:	ja
Max. Number of switching outputs:	4
Modular expansion option:	ja
Different phases can be connected:	nein
On-site/manual operation:	nein
Shipping weight:	0,13 kg
Item weight:	0,13 kg
Dimensions ( Length × Width × Height ):	10,50 × 9,50 × 6,50 cm
