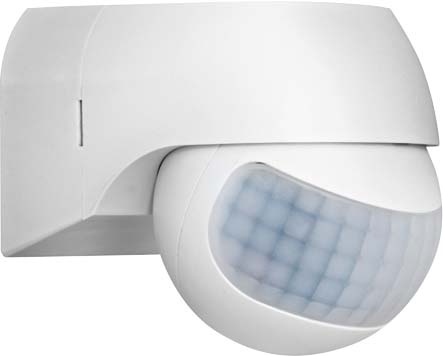

ESYLUX ESYLUX motion detector white 180 degrees MD 180 BASIC white NEW

Item condition: New and in original packaging

Manufacturers: ESYLUX#
EAN: 4015120055089
Heiz24 article number: SP6403286
TARIC: 85365080
Country of origin: CN
Category: Systemgebundene Elektronik (Wächter, Dimmer)

€ 29,01

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

152 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 152 Pcs. we can order for you

Pcs.

Motion detector with 180° field of detection for convenient switching of lighting. Double diaphragm cable entry. Connection base with plug-in terminal and rear cable entry. Adaptation of detection and range through rotatable and tiltable ball head technology. For wall mounting.

PDF

Montageanleitung

Montageanleitung

Produktdatenblatt

Produktdatenblatt

Item information	Value
Version:	Bewegungsmelder
Surface protection:	unbehandelt
Colour:	weiß
Protection class (IP):	IP44
Material grade:	Thermoplast
Height:	66 mm 80 mm
Transparent:	nein
Mounting type:	Aufputz
Halogen-free:	Ja
Voltage type:	AC
Connection type:	Steckklemme
Material:	Kunststoff
Surface finish:	matt
Rated voltage:	230 V
Suitable for wall mounting:	Ja
Suitable for ceiling mounting:	nein
Constant light control:	nein
Antibacterial treatment:	nein
Switch-on delay:	0 s
Wide:	55 mm
Depth:	66 mm 80 mm
Temperature:	-20..40 °C
Frequency:	50 Hz
Response brightness adjustable:	ja
Max. Duty cycle:	15 min
Extension input:	nein
Teach function for response brightness:	nein
Animal track:	nein
IFTTT support available:	nein
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Max. Switching capacity LED:	250 W
Max. Switching capacity:	800 W
Response sensitivity adjustable:	ja
Suitable for C-load:	nein
Switch-off delay:	0 s
Control current:	0 mA
Dimming function with dimmer insert:	nein
Alarm function:	nein
Response brightness:	5..1000 lx
Number of switching zones:	1
Detection field diameter on floor:	20 m
Angle of coverage horizontal:	90..180 °
Remote controllable:	nein
Suitable for wireless transmission:	nein
HVAC control:	nein
Max. Inrush current:	40 A
Max. Range frontal:	5 m
Max. Range to one side:	10 m
Min. duty cycle:	10 s
With DALI interface:	nein
With remote control:	nein
With signal unit:	nein
Optimum mounting height:	2,5 m
Scanning angle:	180 °
Sensor swivel range, horizontal:	30 °
Sensor swivel range, vertical:	30 °
Sensor type:	passiv Infrarot
Staircase monitoring:	nein
Bypass switch:	nein
Undercrawl protection/backfield monitoring:	ja
Networkable:	nein
Forced shutdown:	nein
Forced switching on:	nein
Shipping weight:	0,18 kg
Item weight:	0,18 kg
Dimensions ( Length × Width × Height ):	10,00 × 6,00 × 8,50 cm
