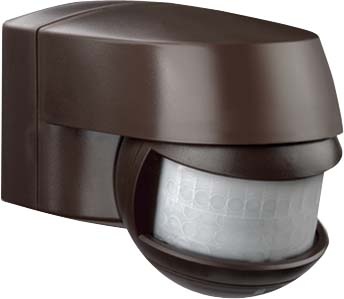

ESYLUX ESYLUX Motion detector 200 degrees MD 200 brown NEW

Item condition: New and in original packaging

Manufacturers: ESYLUX#
EAN: 4015120025327
Heiz24 article number: SP0896235
TARIC: 85365080
Country of origin: CN
Category: Systemgebundene Elektronik (Wächter, Dimmer)

€ 48,34

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

21 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 21 Pcs. we can order for you

Pcs.

Motion detector with 200° detection range for convenient switching of lighting. One-hand plug-in base mounting for quick and easy installation. Double diaphragm cable entry. Connection base with large wiring space and cable entry optionally from above, below or at the rear. Supplied plug-in terminal for wiring through the protective earth conductor. Adaptation of detection and range through rotatable and tiltable ball head technology. Zero-crossing switching: Extends the life of relays and lamps in electronic ballasts (e.g. fluorescent lamps, LEDs) by gentle zero-crossing switching. For wall mounting. Special base for indoor and outdoor corner mounting as accessory.

PDF

Produktdatenblatt

Produktdatenblatt

Montageanleitung

Montageanleitung

Item information	Value
Version:	Bewegungsmelder
Surface protection:	unbehandelt
Colour:	braun
Protection class (IP):	IP44
Material grade:	Thermoplast
Height:	81 mm
Transparent:	nein
Mounting type:	Aufputz
Halogen-free:	nein
Voltage type:	AC
Connection type:	Steckklemme
Material:	Kunststoff
Surface finish:	matt
RAL number (similar):	8017
Rated voltage:	230 V
Suitable for wall mounting:	Ja
Suitable for ceiling mounting:	nein
Constant light control:	nein
Antibacterial treatment:	nein
Switch-on delay:	0 s
Wide:	74 mm
Depth:	102 mm
Temperature:	-25..55 °C
Frequency:	50 Hz
Response brightness adjustable:	ja
Max. Duty cycle:	10 min
Extension input:	nein
Teach function for response brightness:	nein
Animal track:	nein
IFTTT support available:	nein
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Max. Switching capacity LED:	250 W
Max. Switching capacity:	1000 W
Response sensitivity adjustable:	nein
Suitable for C-load:	ja
Switch-off delay:	0 s
Control current:	0 mA
Dimming function with dimmer insert:	nein
Alarm function:	nein
Response brightness:	3..2000 lx
Number of switching zones:	1
Detection field diameter on floor:	20 m
Angle of coverage horizontal:	100..200 °
Remote controllable:	nein
Suitable for wireless transmission:	nein
HVAC control:	nein
Max. Inrush current:	30 A
Max. Range frontal:	5 m
Max. Range to one side:	10 m
Min. duty cycle:	4 s
With DALI interface:	nein
With remote control:	nein
With signal unit:	nein
Optimum mounting height:	2,5 m
Scanning angle:	200 °
Sensor swivel range, horizontal:
Sensor swivel range, vertical:
Sensor type:	passiv Infrarot
Staircase monitoring:	nein
Bypass switch:	nein
Undercrawl protection/backfield monitoring:	ja
Networkable:	nein
Forced shutdown:	nein
Forced switching on:	nein
Shipping weight:	0,23 kg
Item weight:	0,23 kg
Dimensions ( Length × Width × Height ):	12,00 × 7,50 × 8,00 cm
