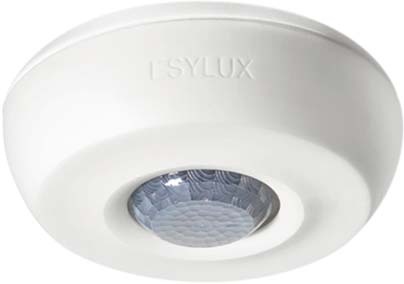

ESYLUX ESYLUX ceiling-mounted presence detector ws AP,360 degrees,RW approx.8m PD 360/8 BASIC NEW

Item condition: New and in original packaging

Manufacturers: ESYLUX#
EAN: 4015120430411
Heiz24 article number: SP6401830
TARIC: 85365080
Country of origin: DE
Category: Systemgebundene Elektronik (Wächter, Dimmer)

€ 70,11

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

131 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 131 Pcs. we can order for you

Pcs.

Presence detector with 360° field of detection for ceiling mounting. Range of up to 8 m in diameter at a recommended mounting height of 3 m. 10 A high-power relay. Zero-crossing switching: prolongs the service life of relays and lamps in electronic ballasts (e.g. fluorescent luminaires, LEDs) by gentle switching in zero-crossing mode. Factory setting for immediate operational readiness. Automatic light control depending on presence and daylight. Additional push-button input. Standard version as surface-mounted unit, recessed ceiling mounting with accessories. Extension of the detection range by parallel switching.

PDF

Item information	Value
Version:	Präsenzmelder
Surface protection:	unbehandelt
Colour:	weiß
Protection class (IP):	IP40
Material grade:	Thermoplast
Height:	33 mm
Transparent:	nein
Mounting type:	Aufputz
Halogen-free:	Ja
Voltage type:	AC
Connection type:	Schraubklemme
Material:	Kunststoff
Surface finish:	matt
RAL number (similar):	9010
Rated voltage:	230 V
Suitable for wall mounting:	nein
Suitable for ceiling mounting:	Ja
Constant light control:	nein
Antibacterial treatment:	nein
Switch-on delay:	30 s
Diameter:	101 mm
Temperature:	0..50 °C
Frequency:	50..60 Hz
Response brightness adjustable:	ja
Max. Duty cycle:	30 min
Extension input:	ja
Teach function for response brightness:	nein
Animal track:	nein
Max. Switching capacity:	2300 W
Response sensitivity adjustable:	nein
Suitable for C-load:	nein
Switch-off delay:	300 s
Control current:	0 mA
Dimming function with dimmer insert:	nein
Alarm function:	nein
Response brightness:	5..2000 lx
Number of switching zones:	1
Detection field diameter on floor:	8 m
Angle of coverage horizontal:	180..360 °
Remote controllable:	nein
Suitable for wireless transmission:	nein
HVAC control:	nein
Max. Inrush current:	78 A
Max. Presence range:	12,58 m²
Max. Range frontal:	3 m
Max. Range to one side:	4 m
Min. duty cycle:	5 s
With DALI interface:	nein
With remote control:	nein
With signal unit:	ja
Optimum mounting height:	3 m
Scanning angle:	360 °
Sensor swivel range, horizontal:
Sensor swivel range, vertical:
Sensor type:	passiv Infrarot
Staircase monitoring:	ja
Bypass switch:	nein
Undercrawl protection/backfield monitoring:	nein
Networkable:	nein
Forced shutdown:	ja
Forced switching on:	ja
Shipping weight:	0,14 kg
Item weight:	0,14 kg
Dimensions ( Length × Width × Height ):	11,00 × 11,00 × 8,50 cm
